8. MPPT start voltage: As low as 90V (for 48V battery system). This extends your daily power generation by capturing energy earlier in the morning and later at dusk.【 All-in-One Solar Inverter】

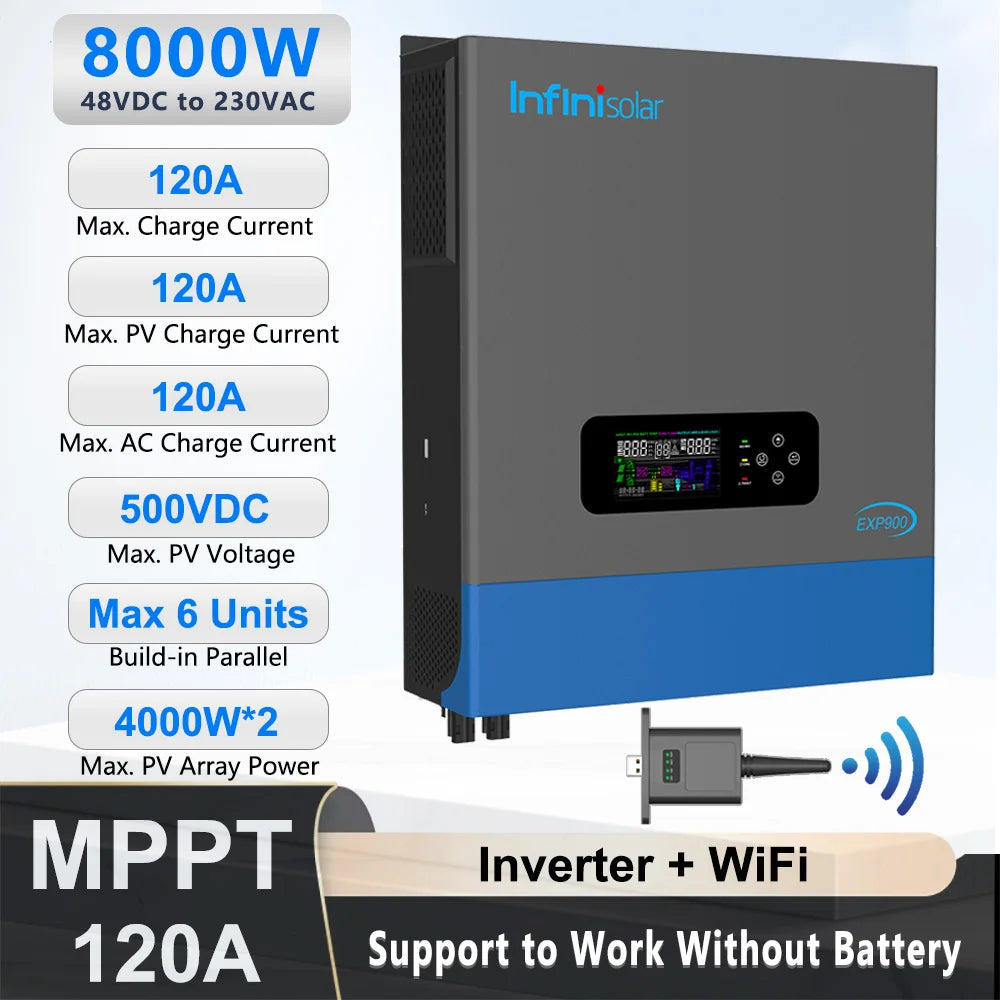

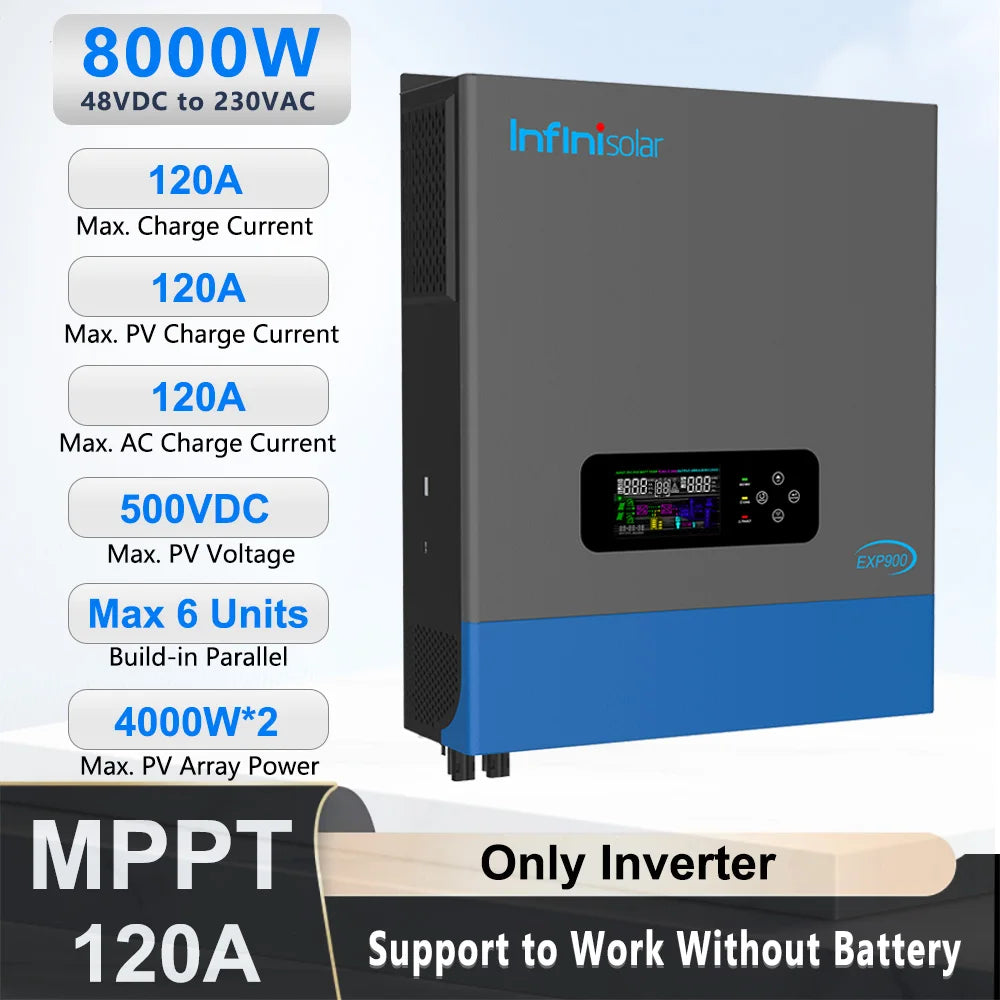

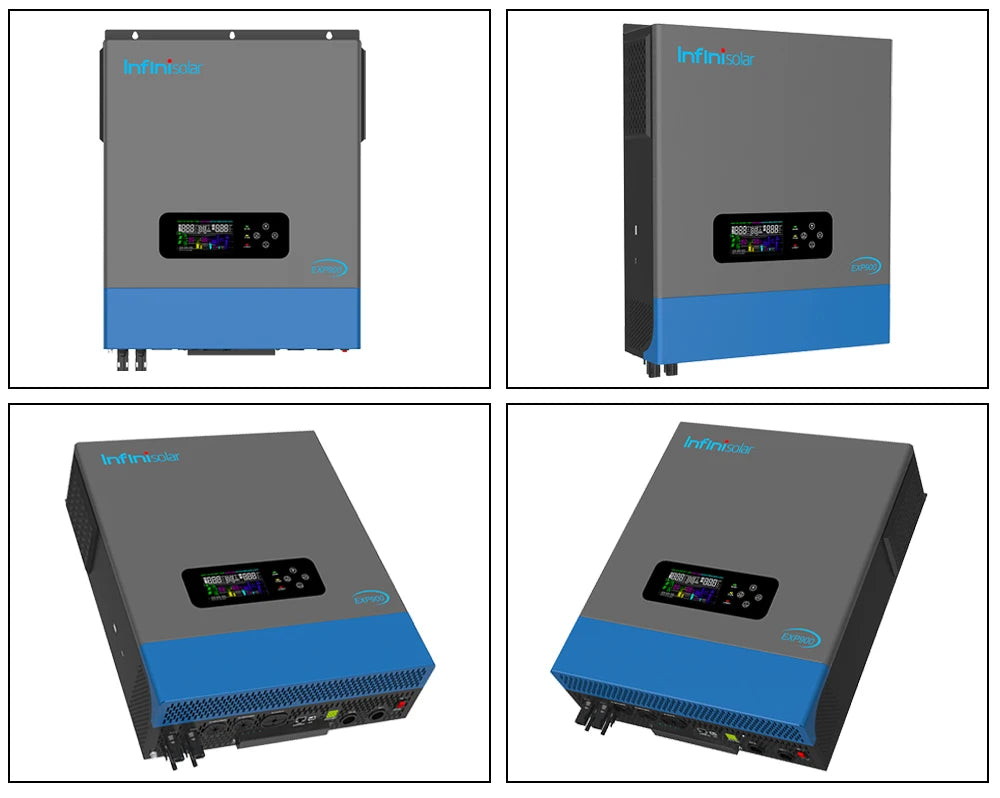

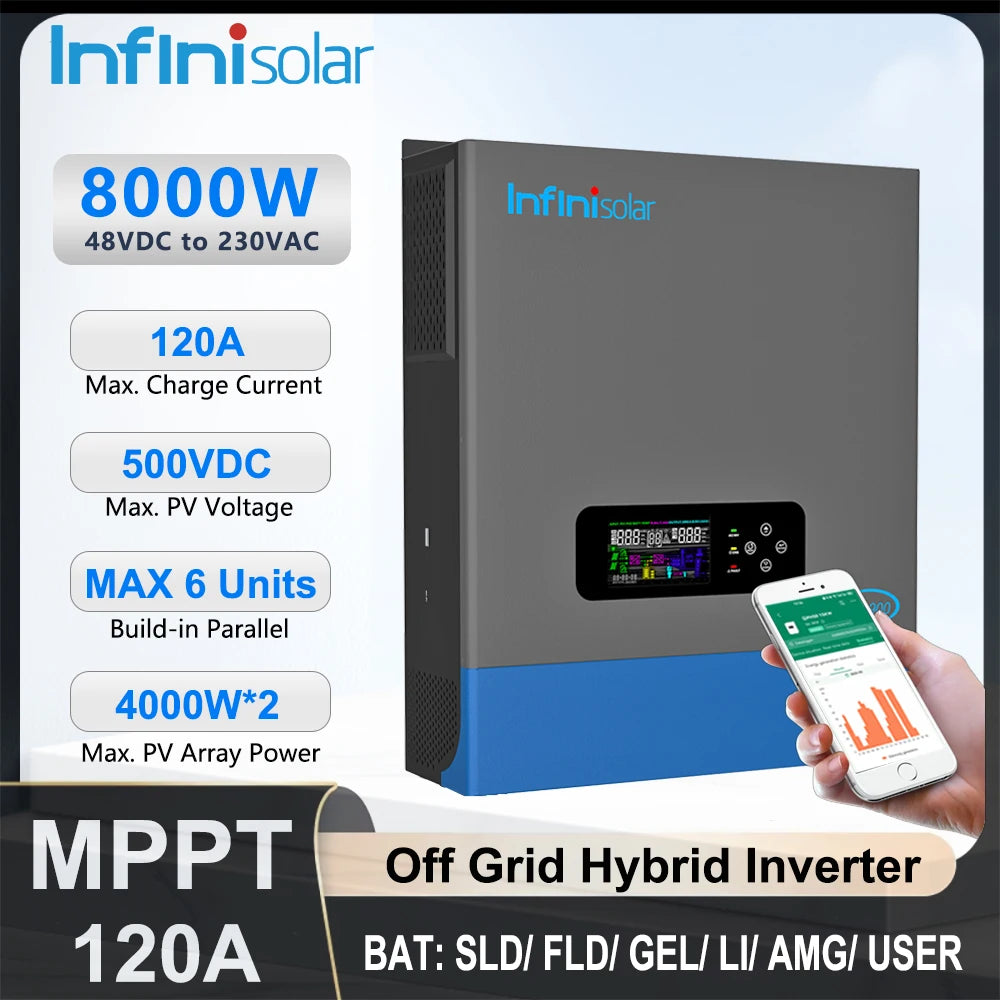

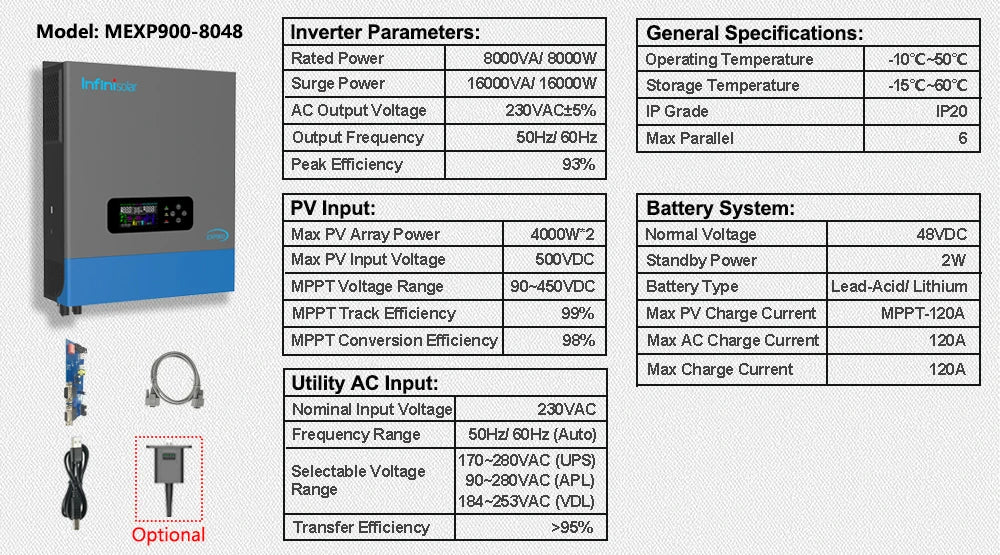

Infinisolar MEXP900-8048 inverter is an 8 kW 48V to 220V/230V/240V single phase off-grid all-in-one solar Inverter, with built-in 120A MPPT charger and 120A AC charger. Combining solar, AC utility/ generator, and battery to offer uninterruptible power supply.【Dual MPPT & Wide PV Input】

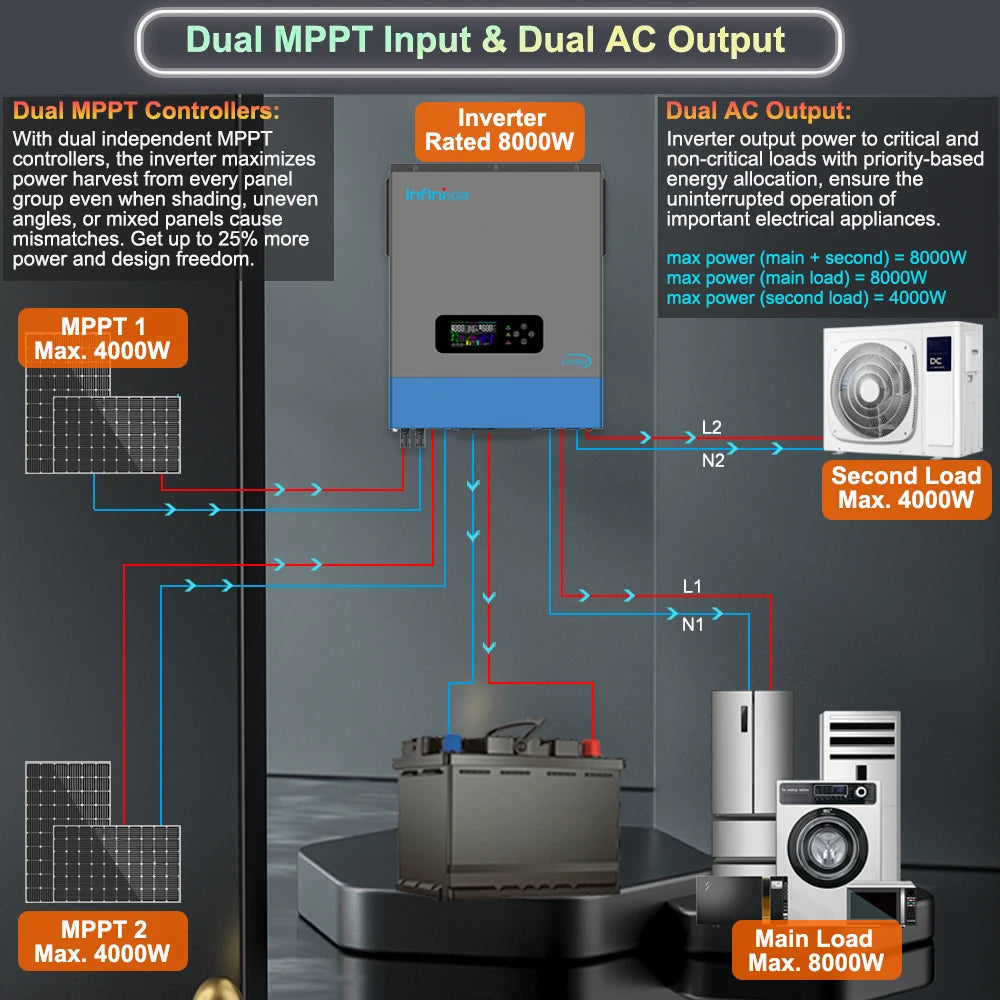

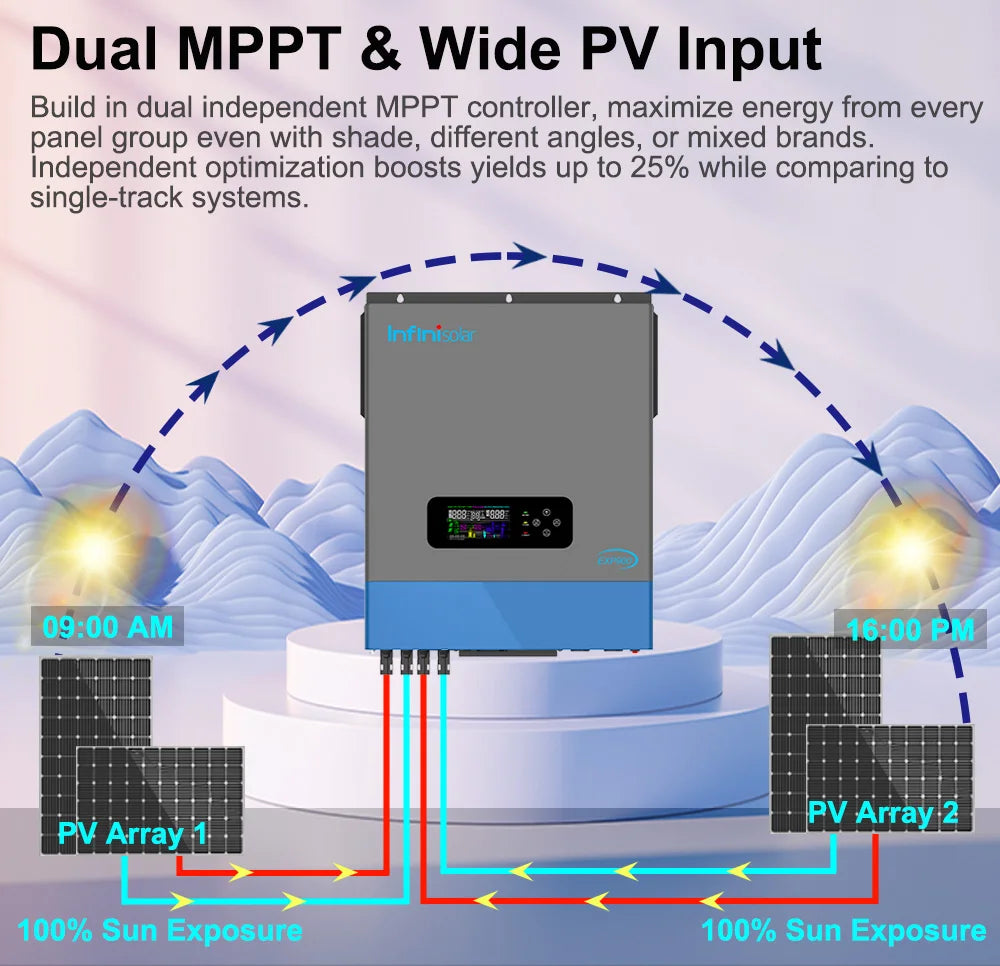

Build in dual 120A independent MPPT controller, maximize energy from every panel group—even with shade, different angles, or mixed brands. Independent optimization boosts yields up to 25% while comparing to single-track systems.【Smart Dual AC Output】

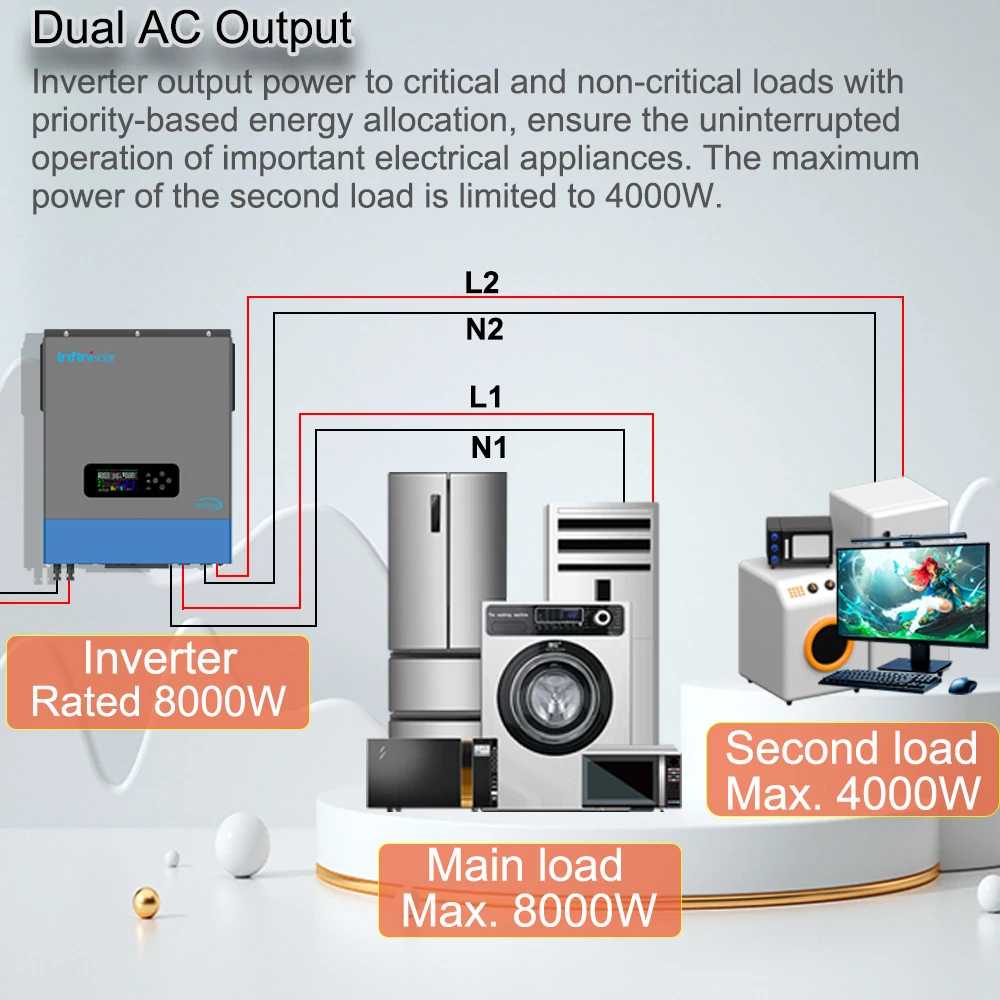

Inverter output power to critical and non-critical loads with priority-based energy allocation, ensure the uninterrupted operation of important electrical appliances. The maximum power of the second load is limited to 4000W.【Multiple Control Modes of Dual AC Output 】

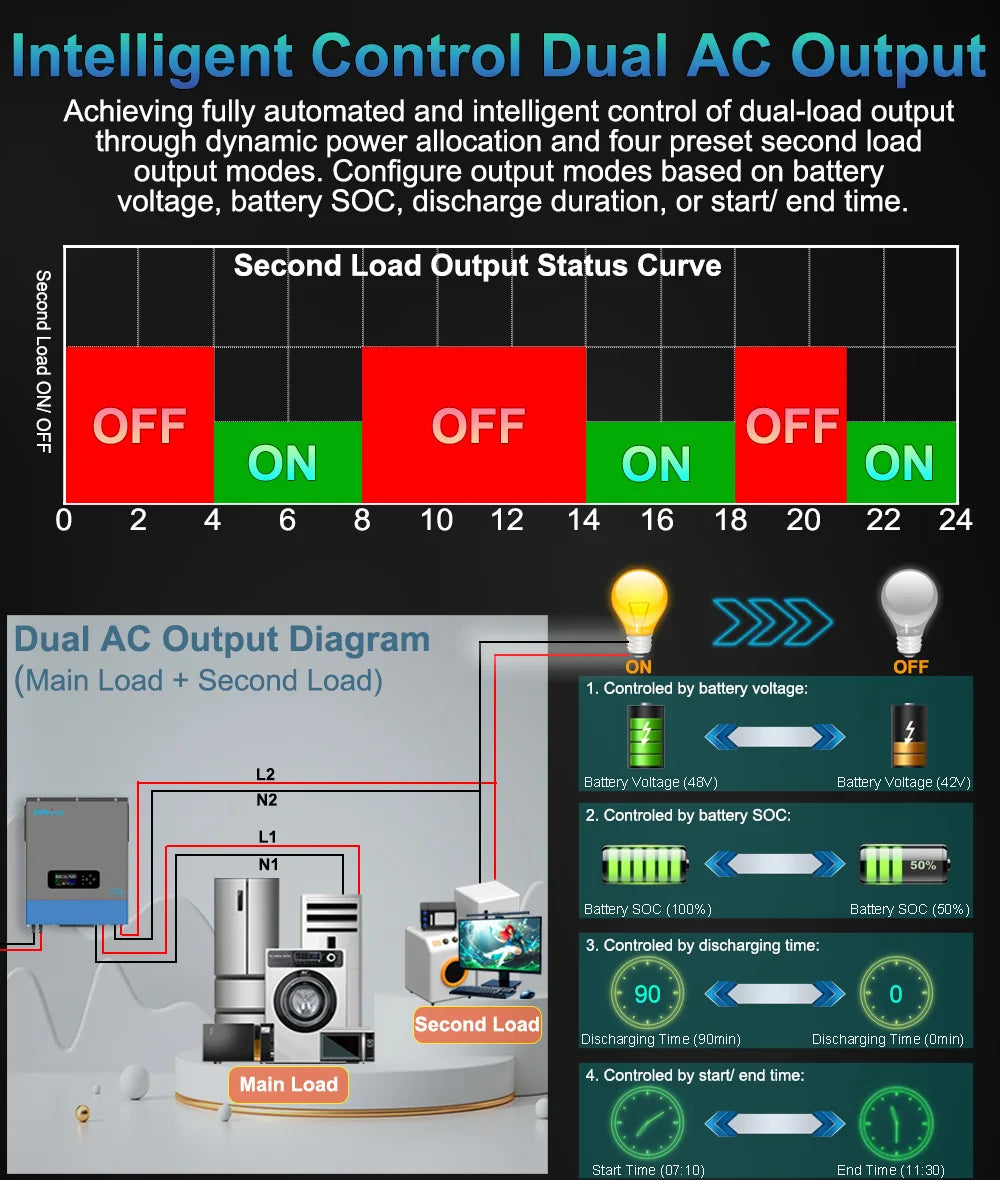

Achieving fully automated and intelligent control of dual-load output through dynamic power allocation and four preset second load output modes. Configure output modes based on battery voltage, battery SOC, discharge duration, or start/ end time.【Support to Work Without Battery】

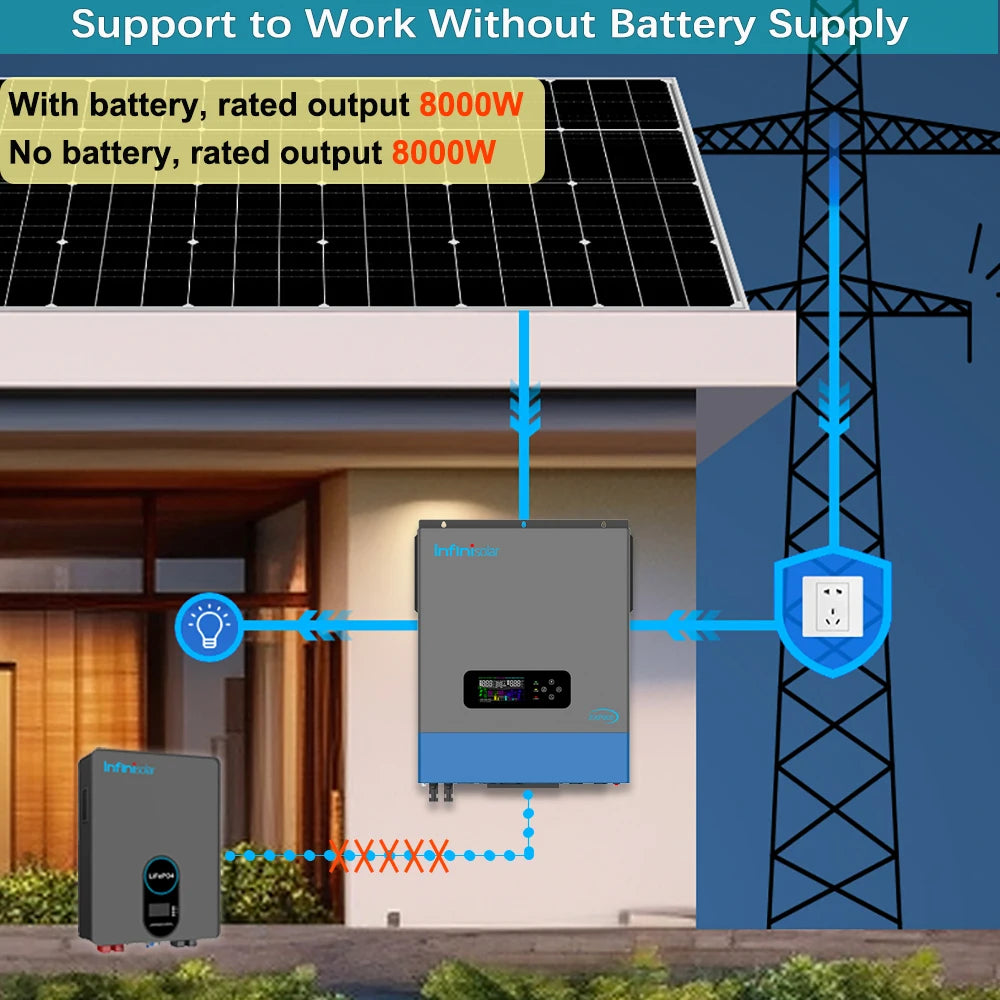

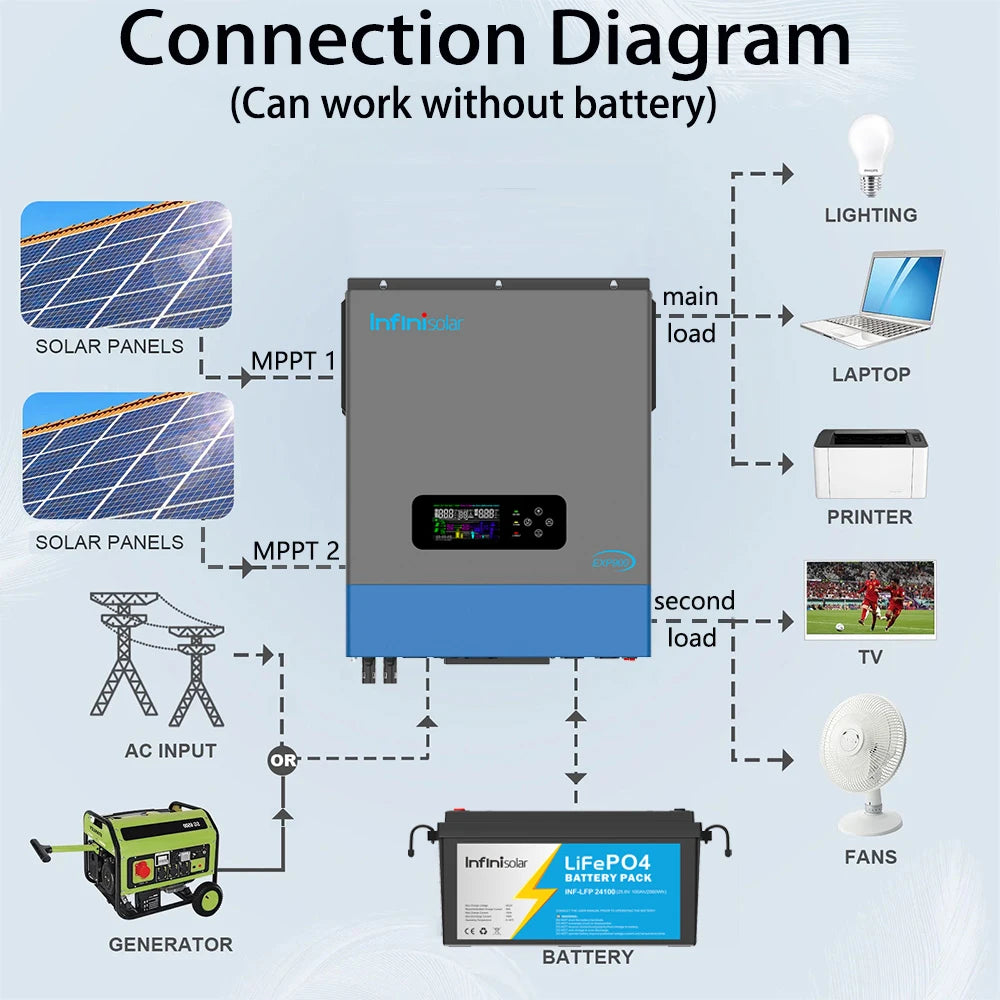

Battery-less operation enables direct solar-to-load power conversion, harnessing solar energy for immediate appliance operation. And in this scenario, the rated output power is up to 8000W, which is the same as inverter full rated power.【High Compatibility With Various Batteries】

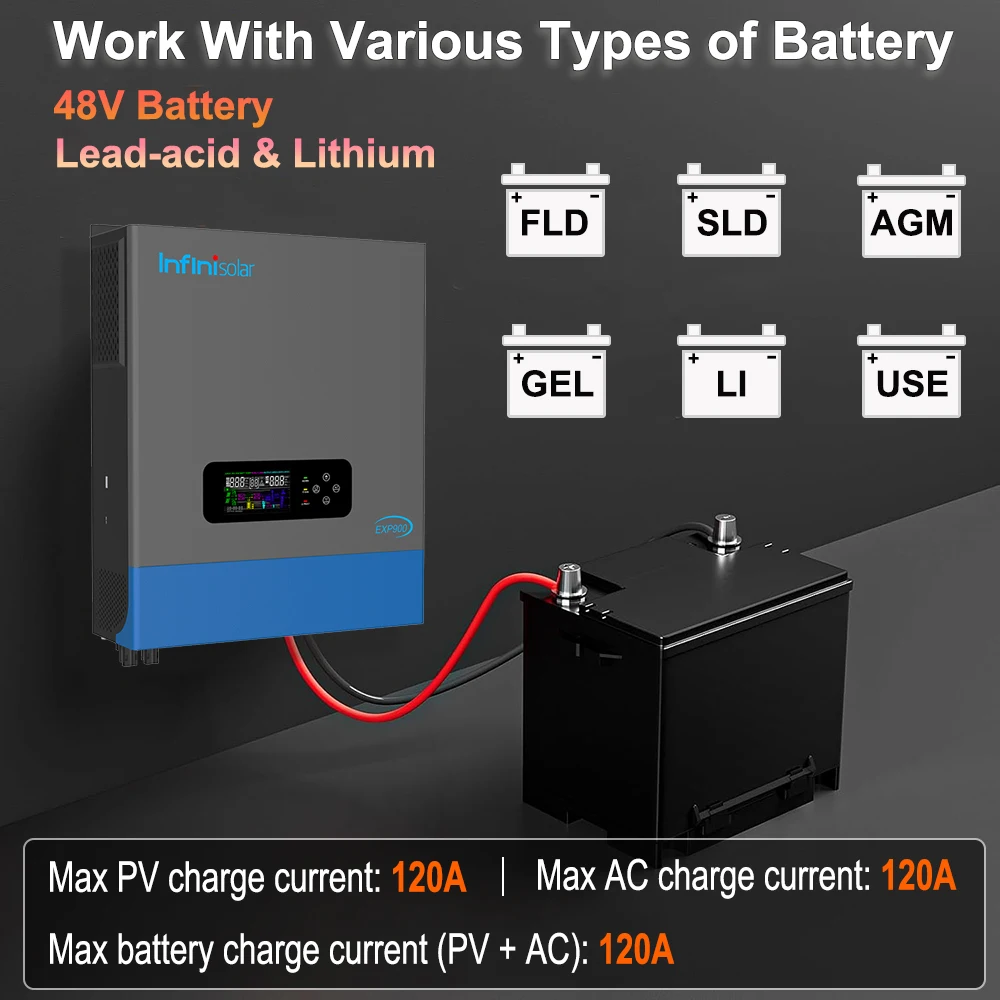

The inverter features wide battery compatibility, allowing connect to 48V Lead-acid (AGM, GEL, FLA, SLA...) batteries, Lithium (LiFePO4) batteries and user-defined batteries.【Dual Lithium Battery Auto Activation】

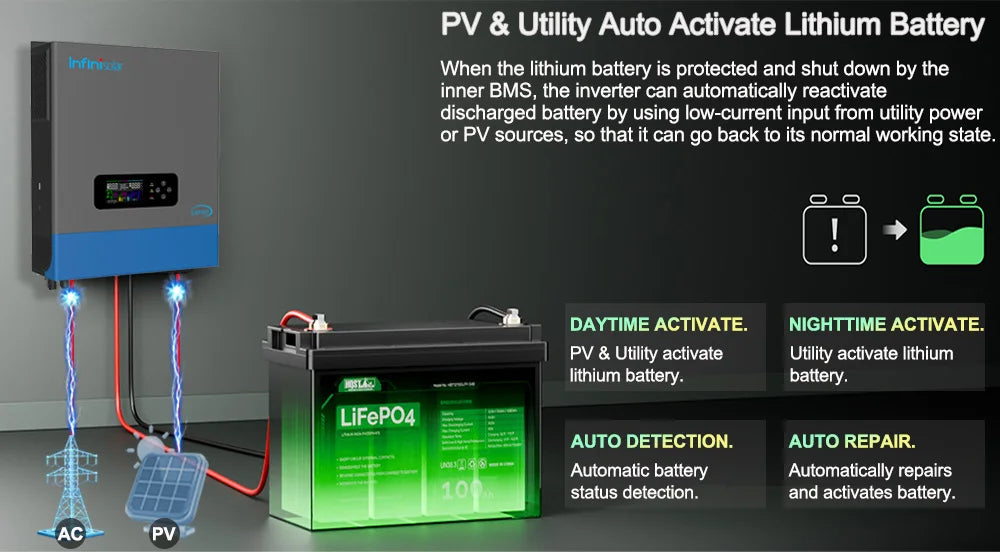

When the lithium battery is dormant, the mains AC power and photovoltaic can automatically detect its status and activate it back to working state.Dual activation function ensures the dormant lithium battery can be activated during both day and night.【Smart Charging Algorithm For Different Battery】

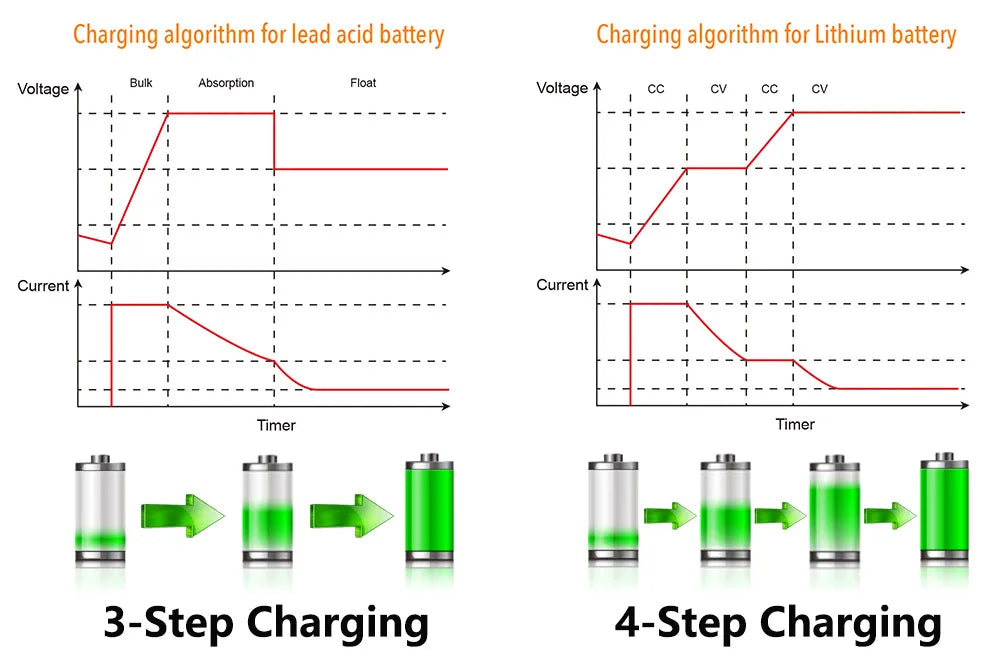

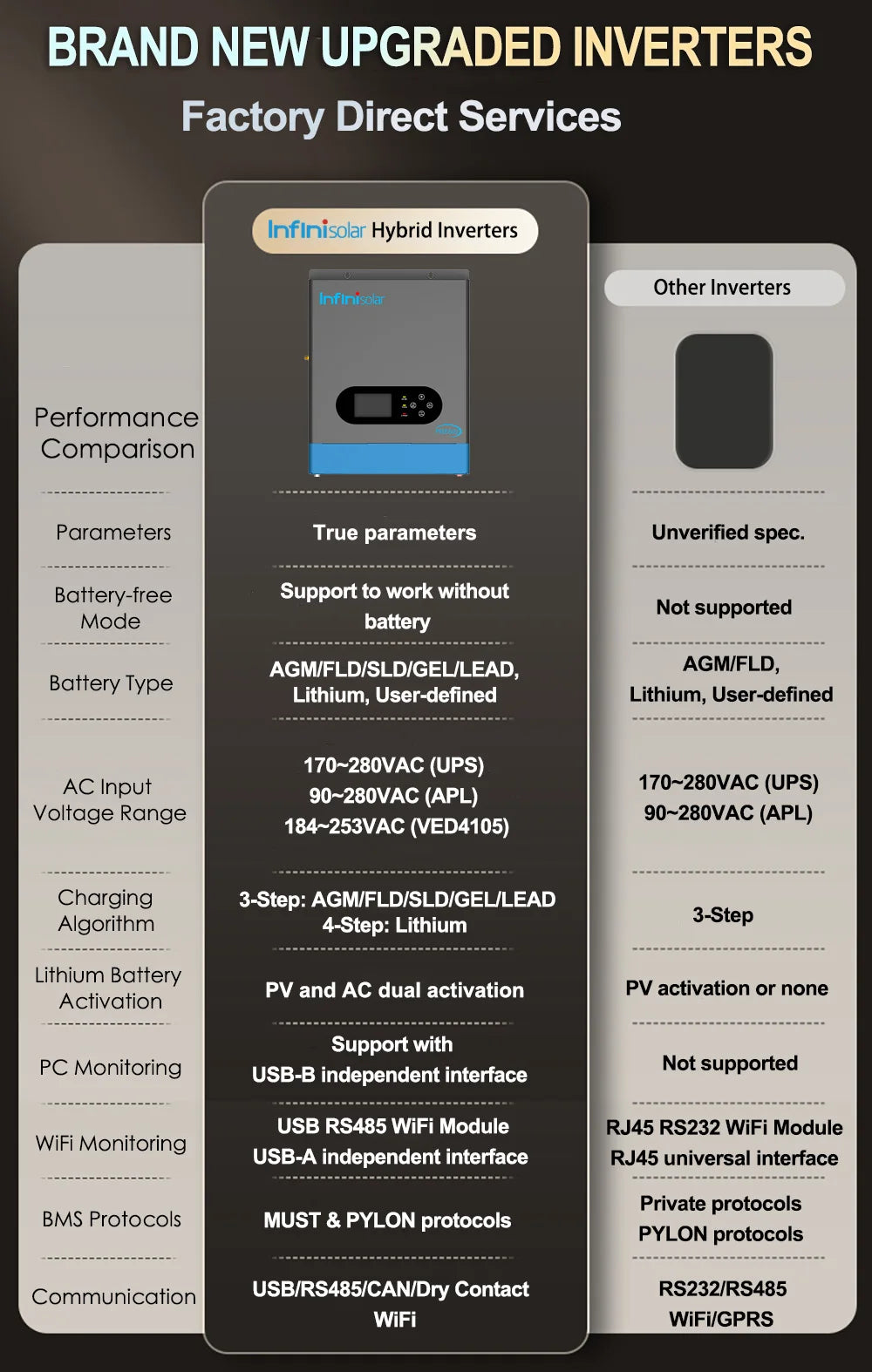

Compared to other inverters, we have adopted 3-step charging algorithm for lead-acid battery, 4-step charging algorithm for Lithium battery, unlocks 30% longer battery life with precision parameter tuning.【Segmented Charging & Discharging Modes】

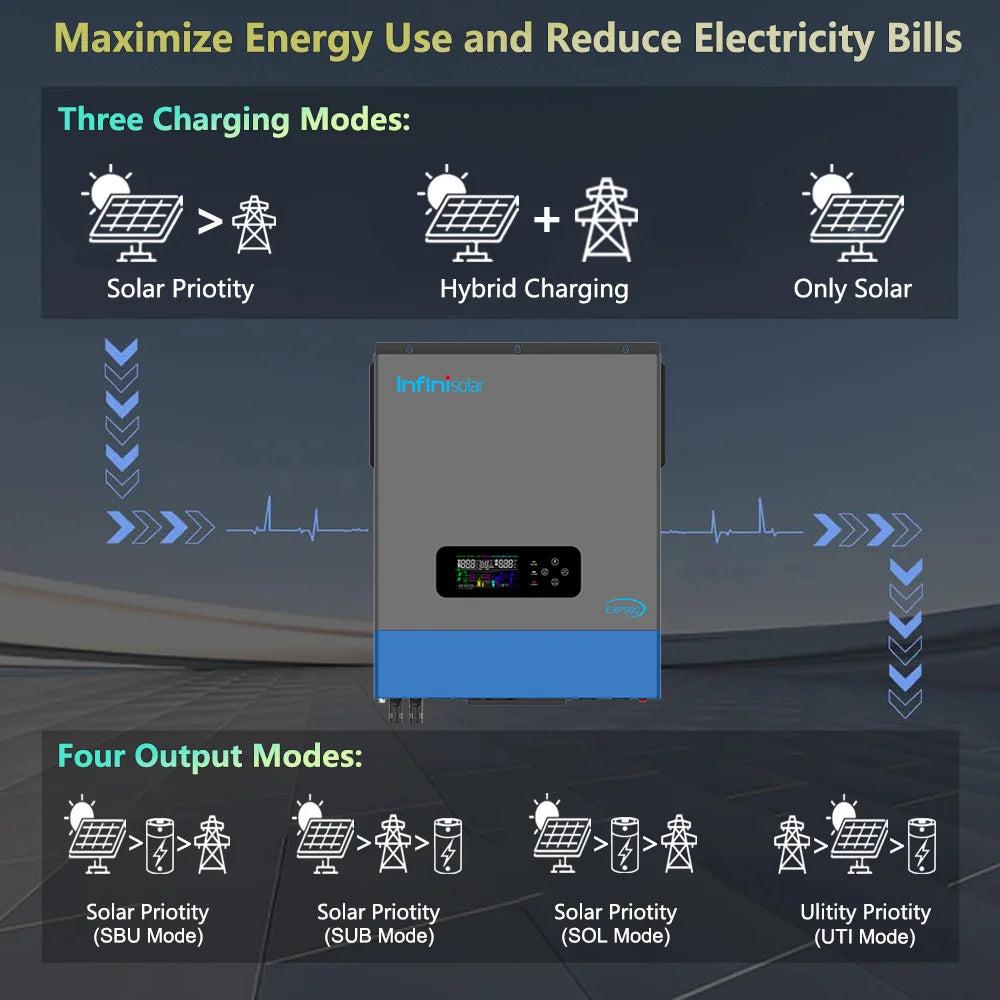

There are three battery charging modes that are optional, i.e. only solar, solar priority, and utility & solar hybrid charging; and four load output working modes (SUB, SBU, SOL, UTI) are available, to meet different application requirements.【Optimization Solar Supply Scheduling】

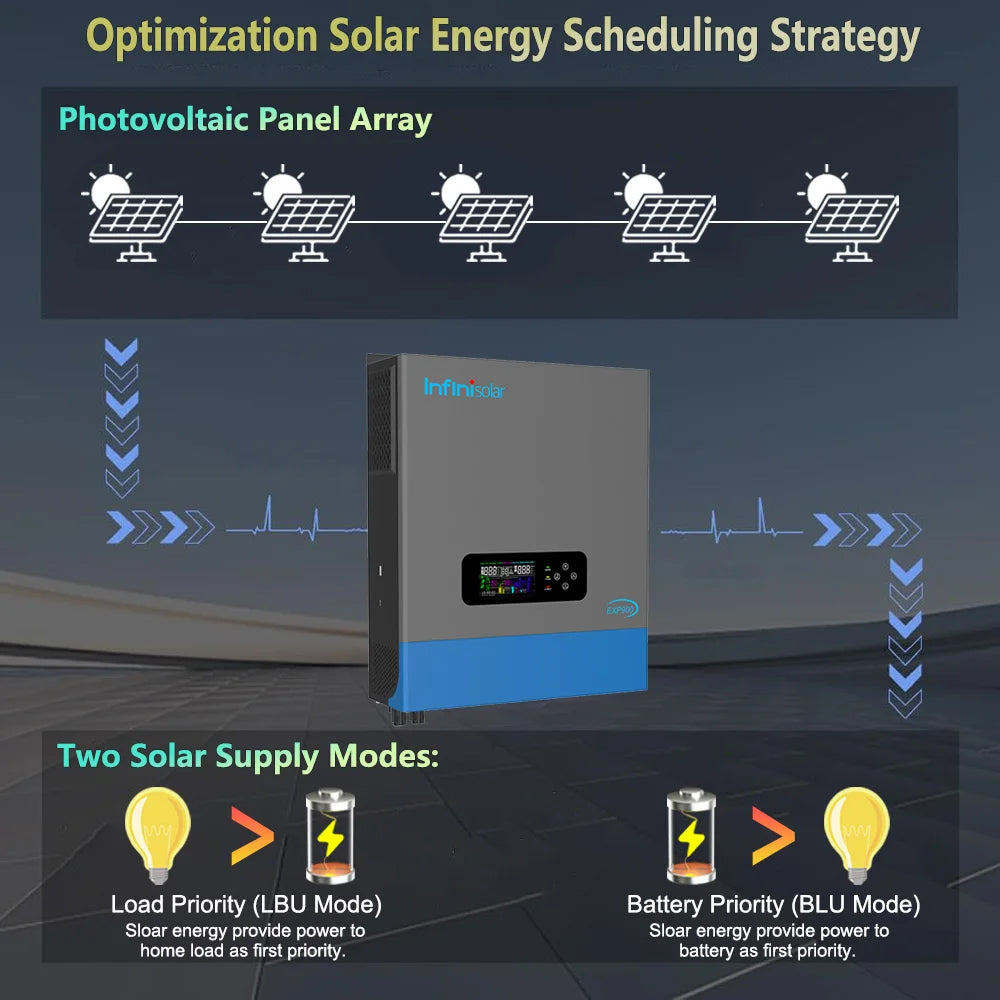

Featuring two solar supply modes: load priority and battery priority. Load priority mode can directly use solar energy to power home appliances for optimal self-consumption. Battery priority mode will charge battery first for reliable backup energy. Let you align solar flow with your specific energy requirement.【Power Saving Mode Supported】

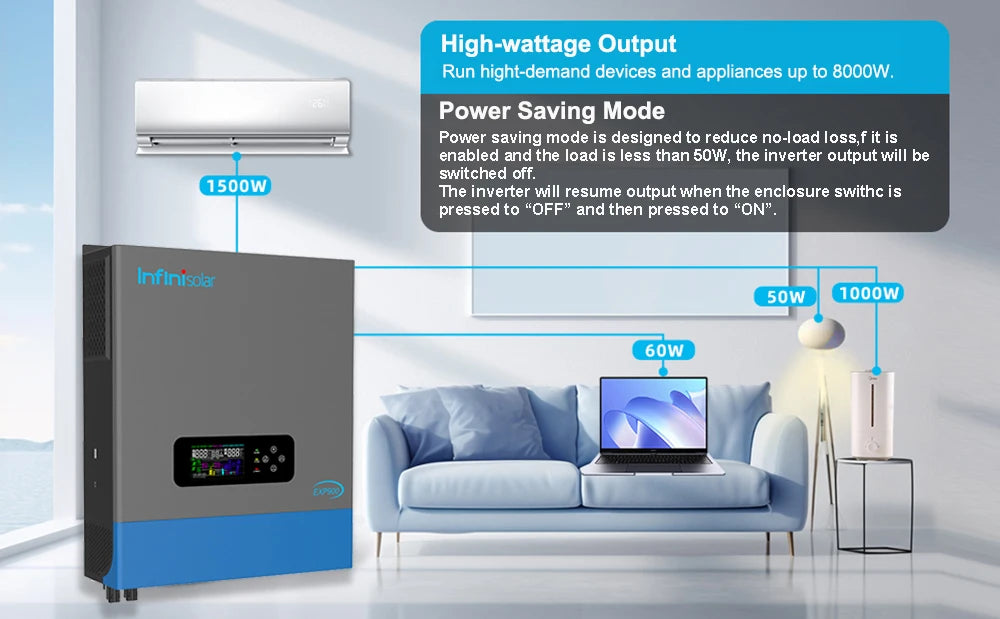

Power saving mode is designed to reduce no-load loss, if it is enabled and the load is less than 50W, the inverter output will be switched off. The inverter will resume output when the enclosure switch is pressed to "OFF" and then pressed to "ON".【Max Parallel 6 Units】

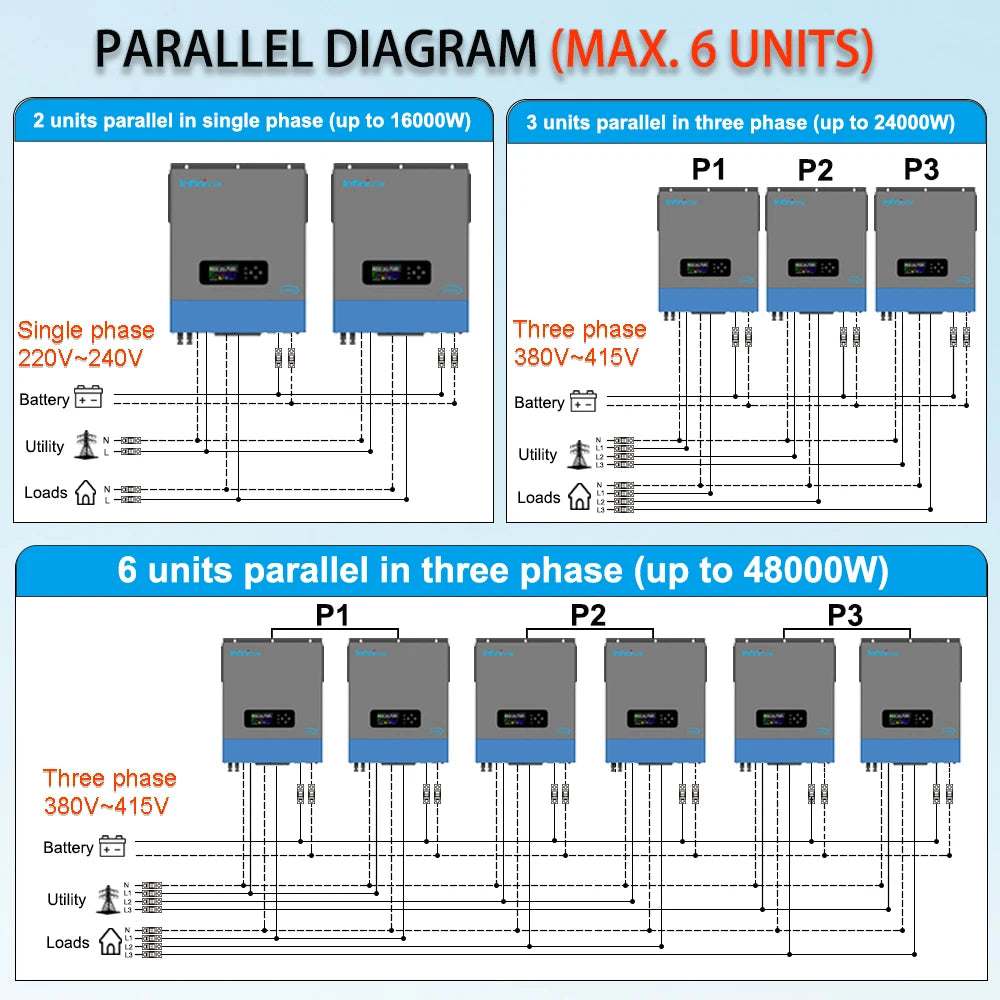

Support parallel 6 units up to 48KW power output, you will get 230V single phase or 380V 3-phase support (more than 3 unit in parallel), increases the inverter power and surge capacity. The package includes 1pcs built-in parallel card and 1pcs parallel cable.【Seamless AC & DC Auto Switching】

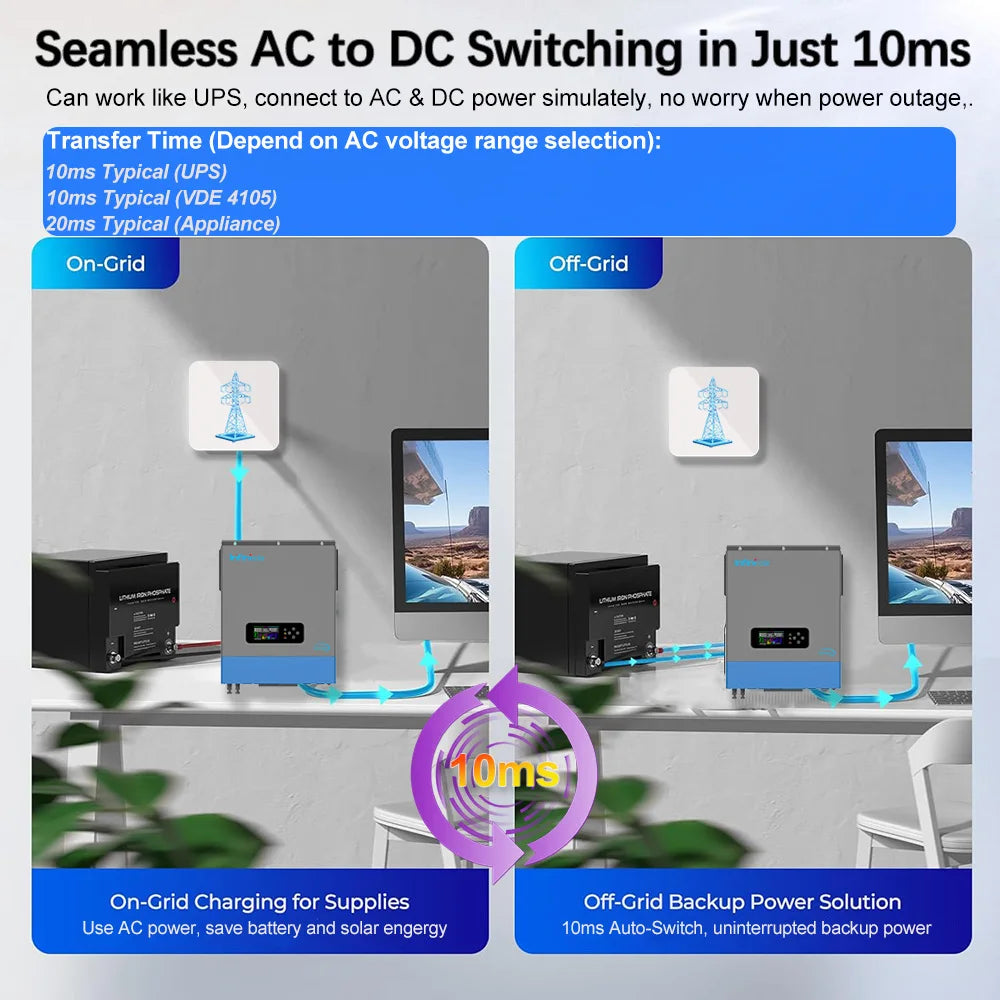

Can work like UPS, 10ms/20ms AC & DC auto-switching ensures uninterrupted power for critical loads during grid transitions.【Pure Sine Wave Solar Inverter】

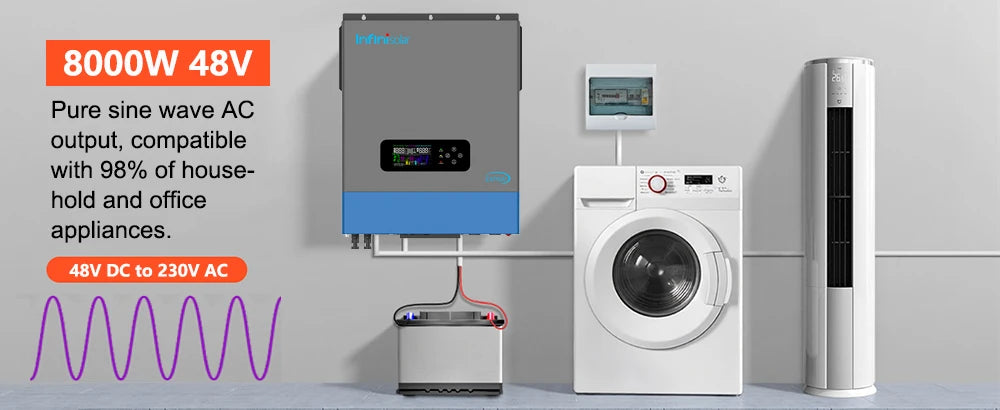

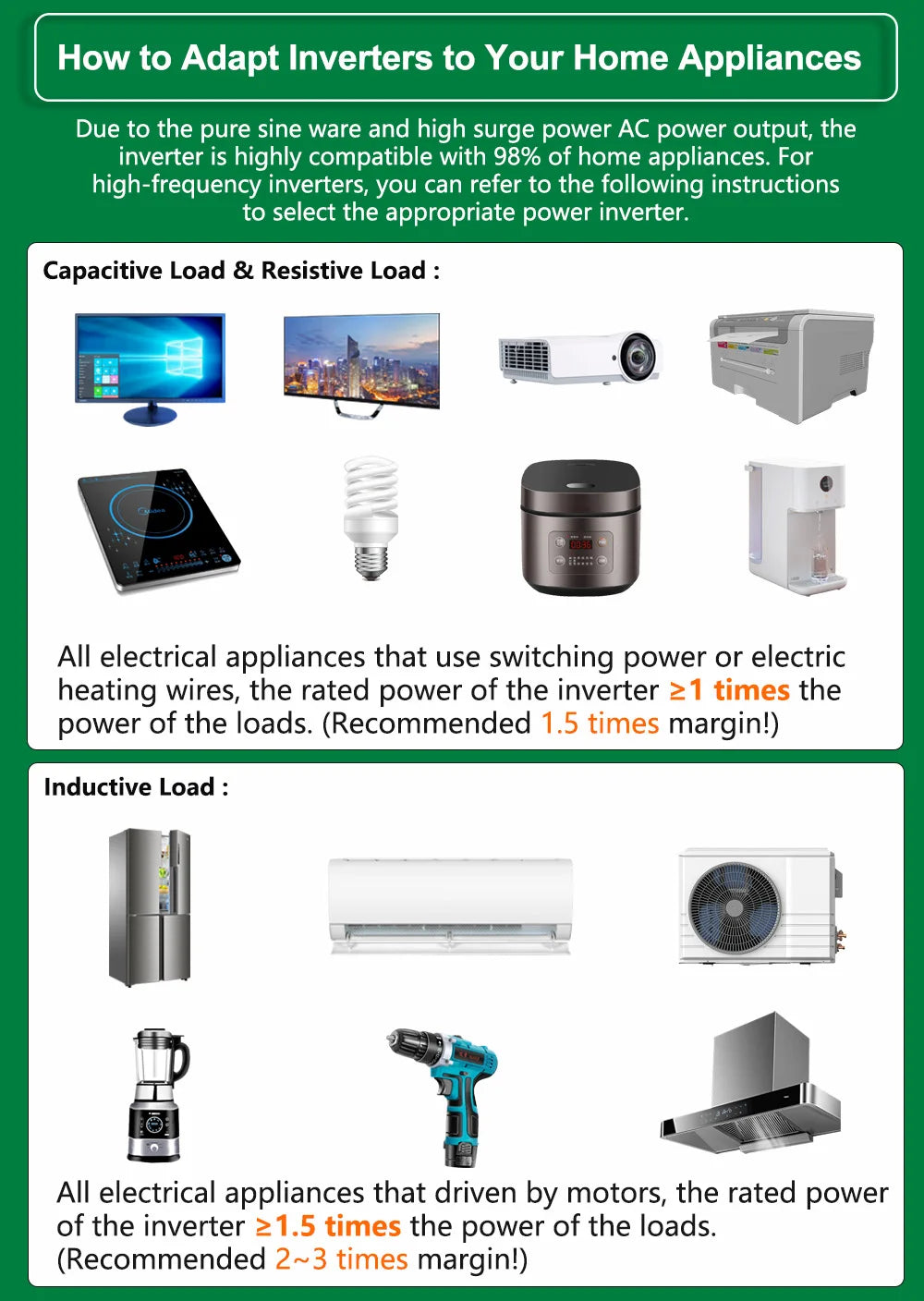

8KW rated power, dual AC 230V pure sine wave output, suitable for 98% of household and office appliances such as refrigerators, lamps, televisions, fans, air conditioning, and other AC loads.【Wired PC Monitoring】

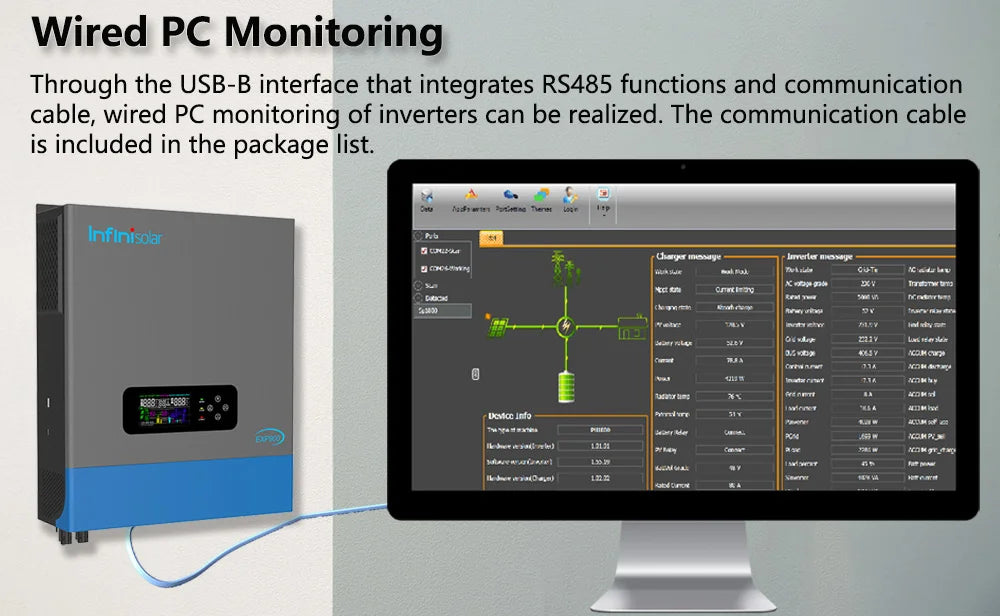

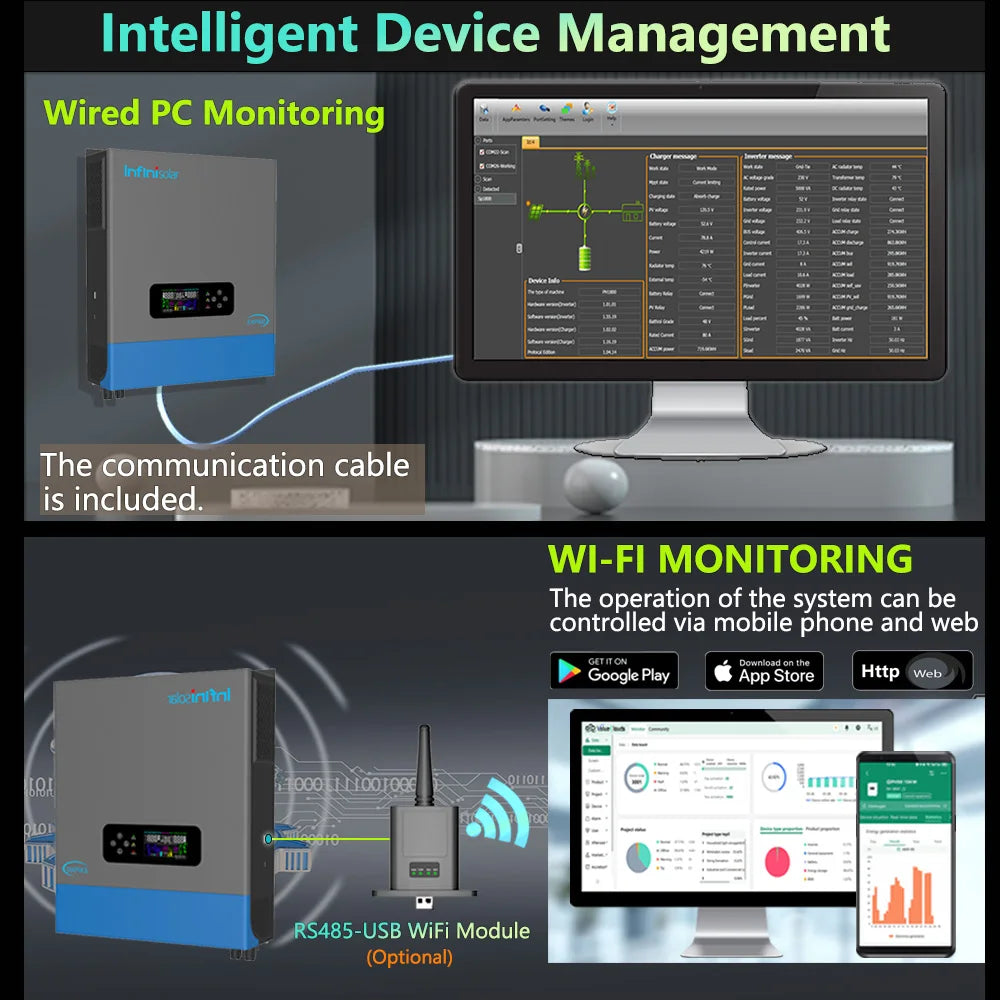

Through the USB-B interface that integrates RS485 functions and communication cable, wired PC monitoring of inverters can be realized. The communication cable is included in the package list. (Note: PC monitoring and Wi-Fi monitoring cannot be enabled at the same time.)【WiFi Remote Monitoring】

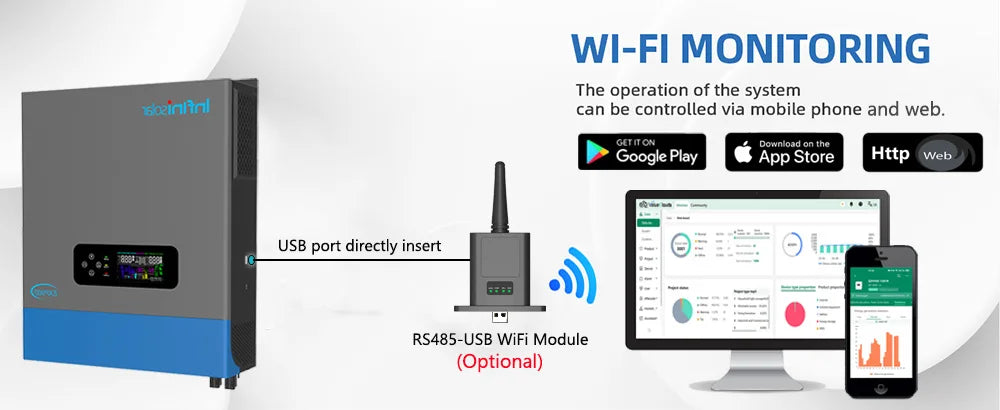

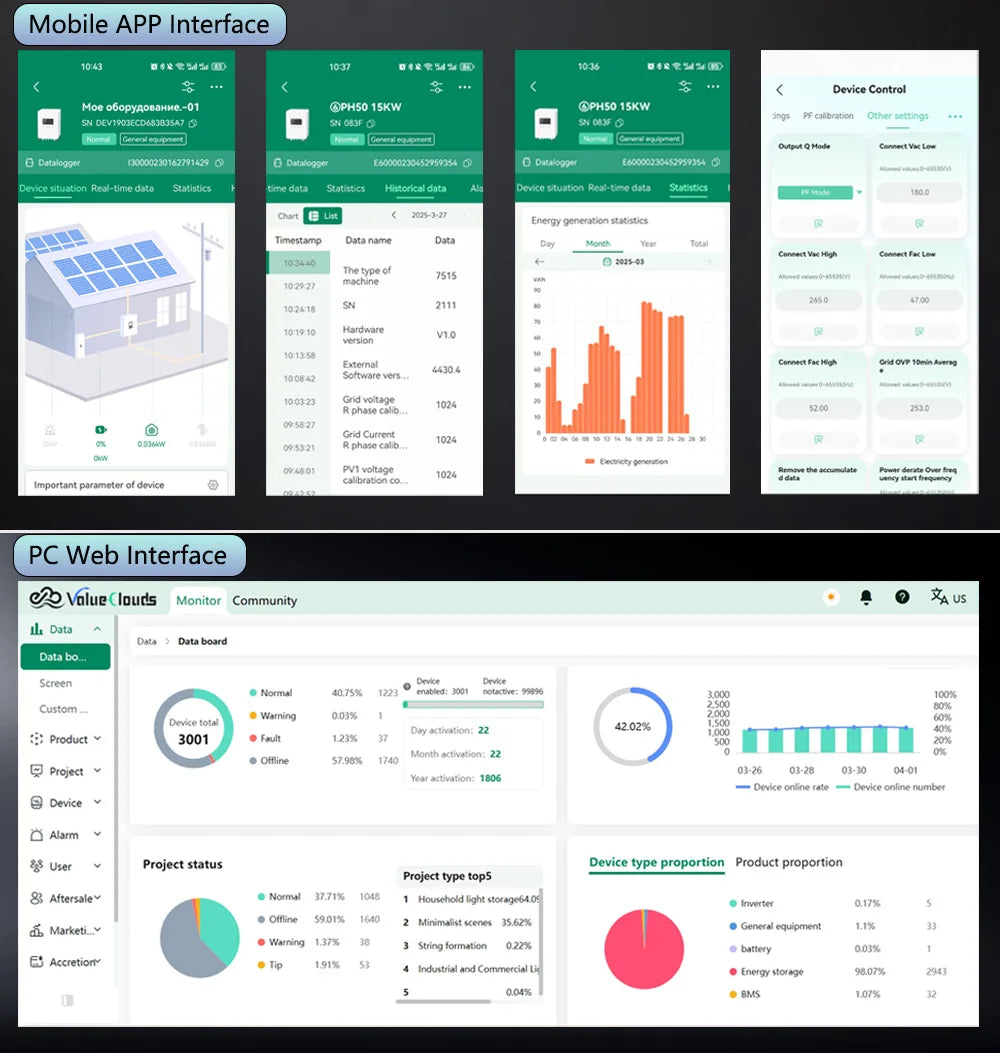

Unlike other inverters on the market, we use the USB-A interface that integrated RS485 communication function. This unique configuration enables seamless connection to an external Wi-Fi module, providing independent remote monitoring capabilities. Users can effortlessly access real-time device status or adjust parameters anytime & anywhere through a mobile app or PC web. (Note: The WiFi module is optional.)【Color LCD Display & LED Indicators】

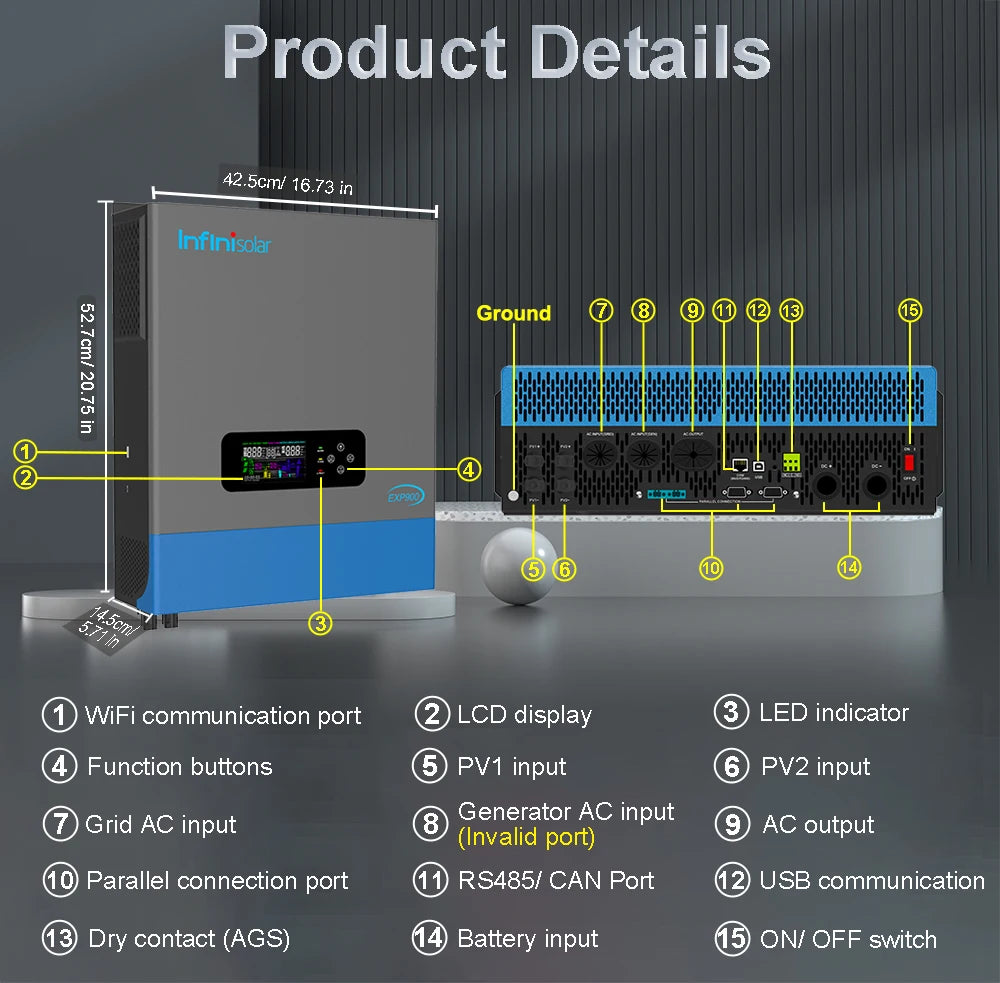

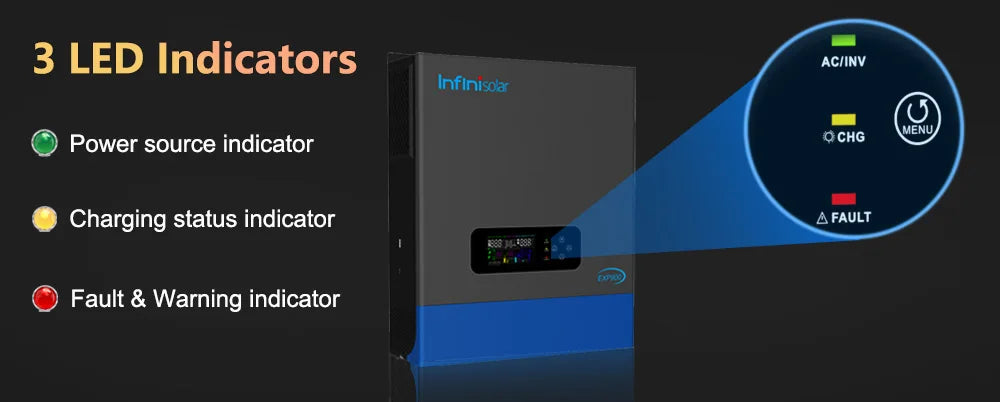

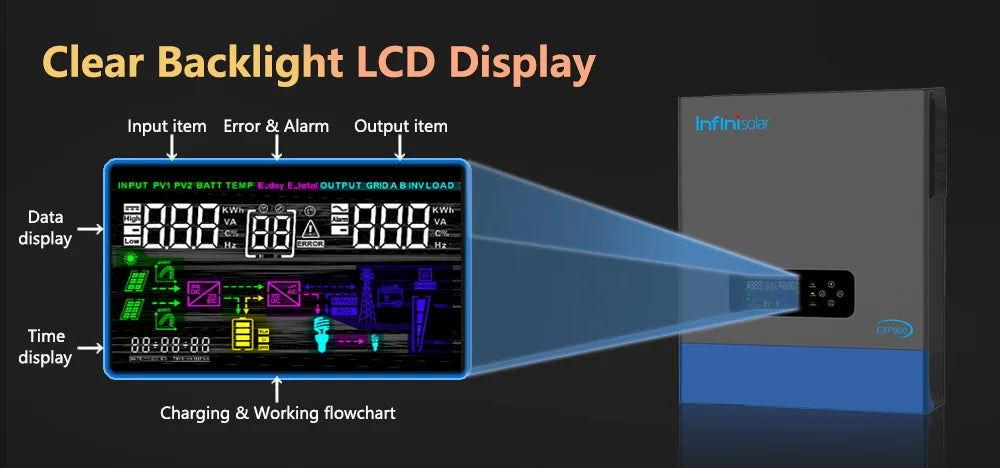

With function buttons and a LCD display, indicating the operating status and input/output power information, allowing you to set parameters like battery charging current, working modes etc.【Advanced Communication and Integration】

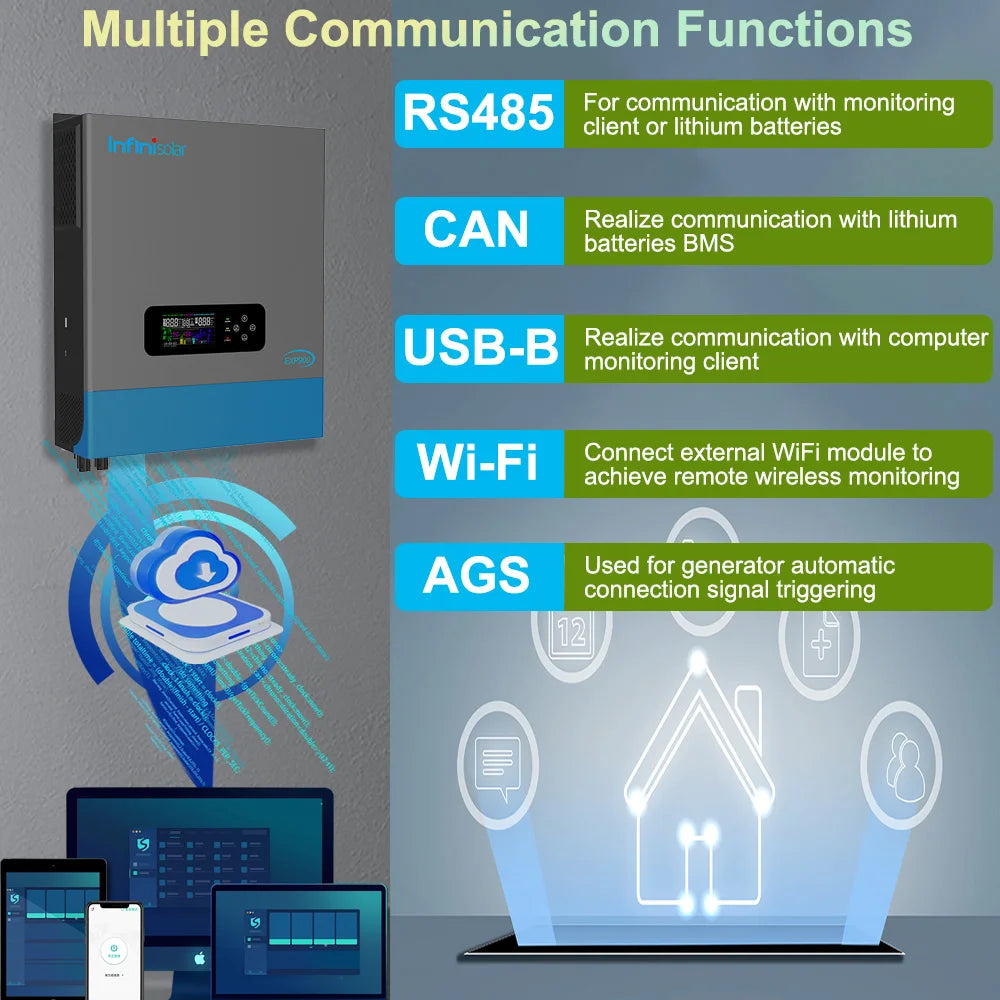

Through the built-in communication protocol and multiple independent communication interfaces (RS485, CAN, USB, WiFi, AGS), seamless communication between the inverter and external monitoring devices, generators and lithium batteries can be easily achieved.【BMS Communication With LI Battery】
The inverter is built-in BMS protocols for seamless lithium battery communication. Compatible with MUST and PYLON lithium batteries via CAN protocols.【360° All Round Protections】
The hybrid solar inverter offers 360° comprehensive protection with various features, such as short circuit protection, over-voltage and under-voltage protection, overload protection, and reverse polarity protection. These safety measures significantly enhance the security of your electrical circuits and usage.
