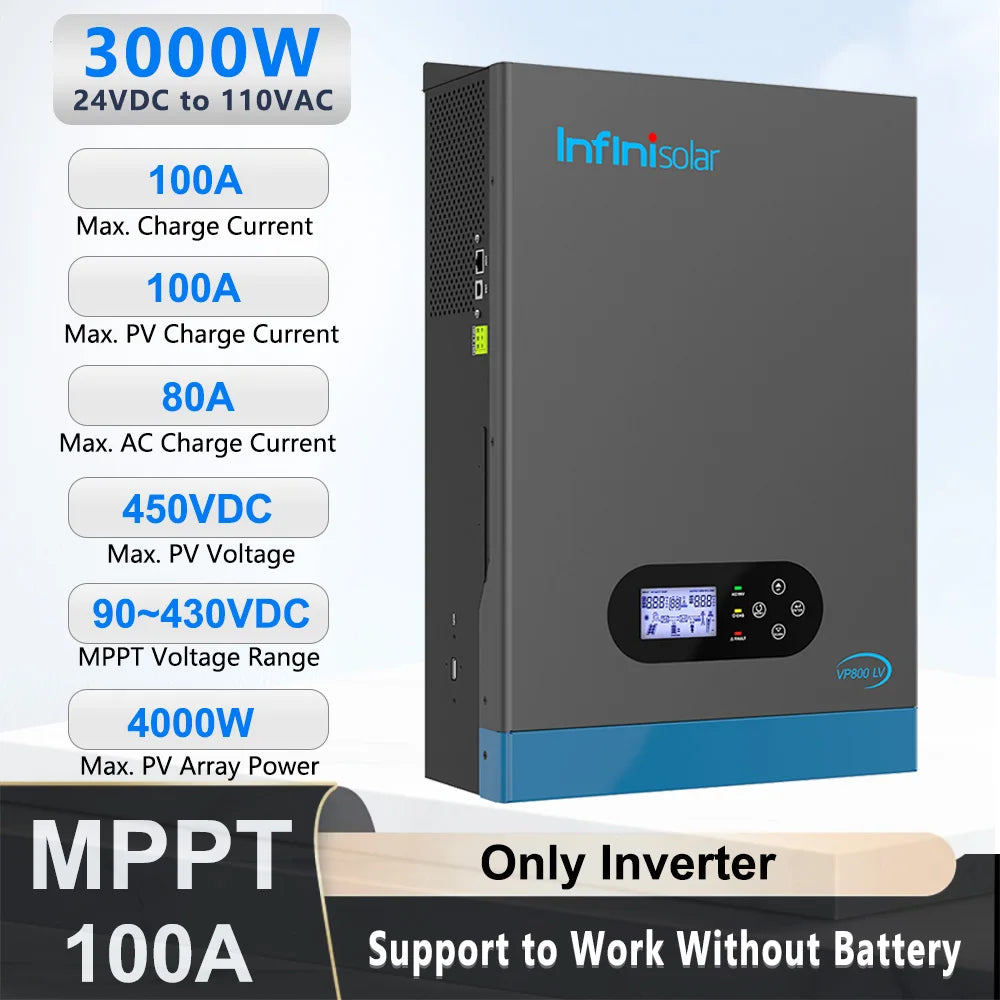

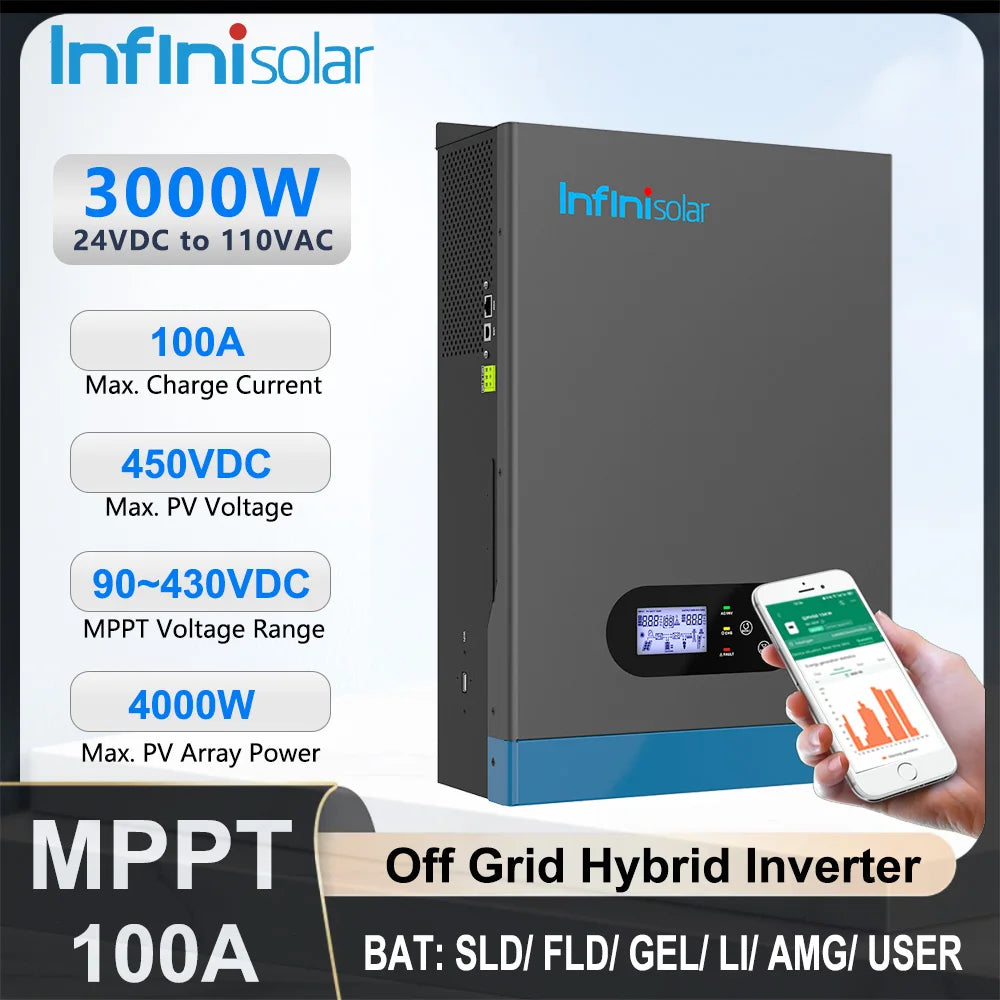

【 All-in-One Solar Inverter】

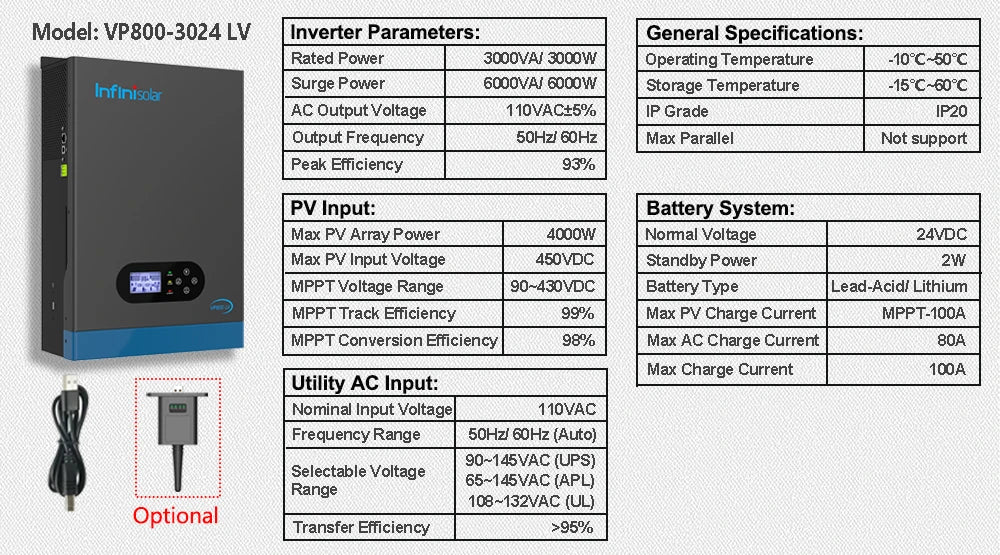

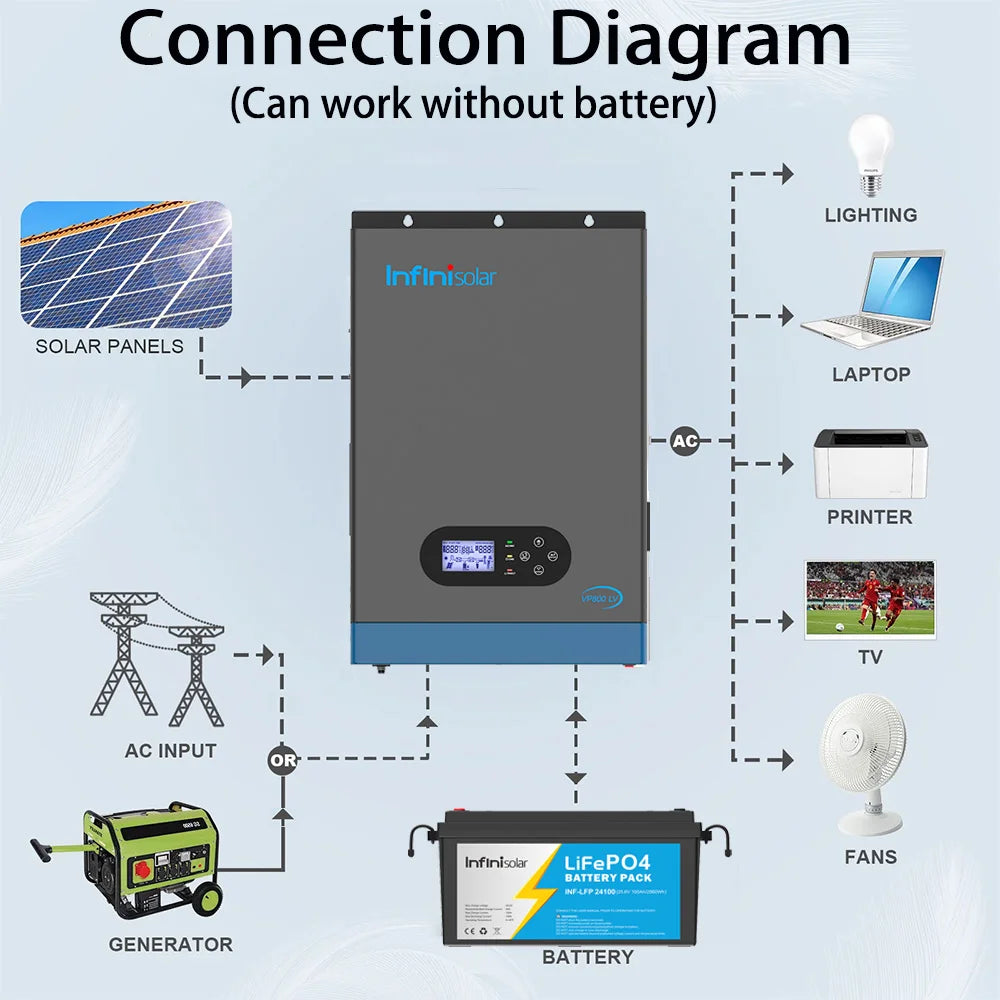

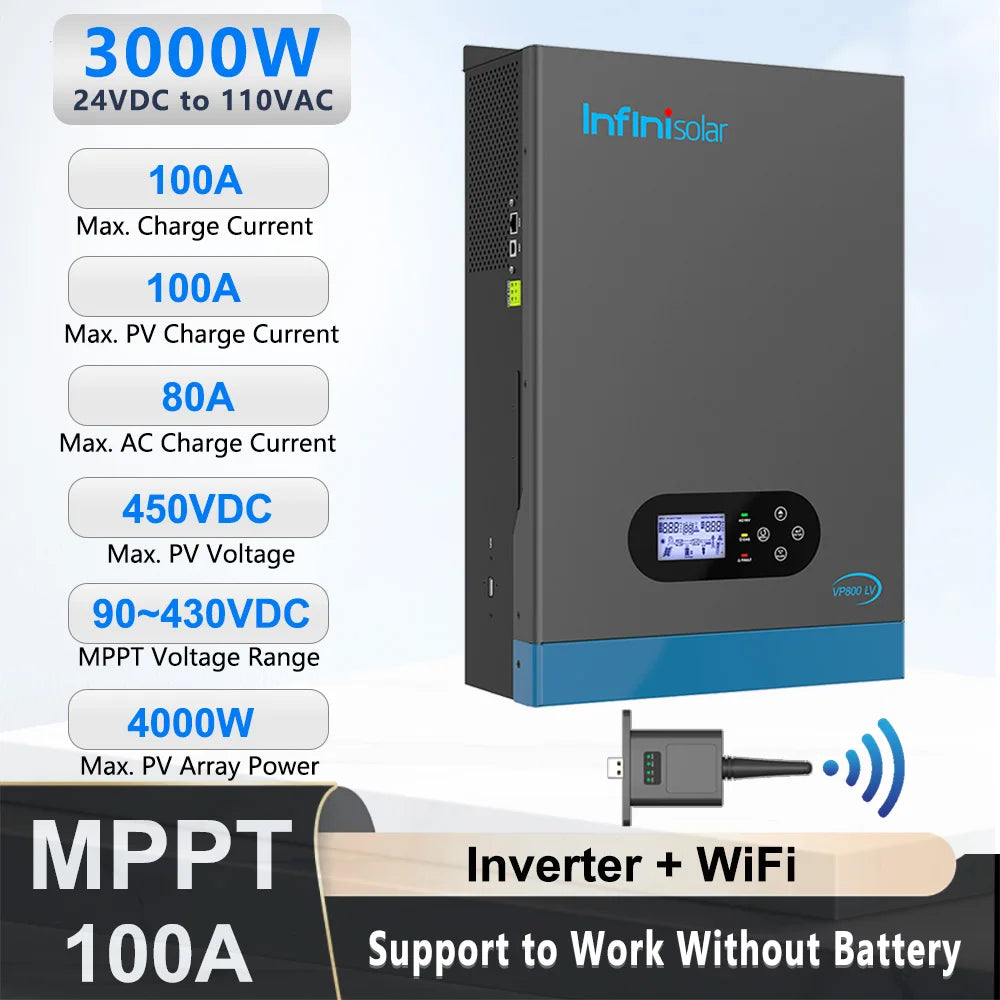

Infinisolar VP800-3024 LV inverter is a 3KW 24V to 100V/110V/120V single-phase off-grid all-in-one solar Inverter, with built-in 100A MPPT charger and 80A AC charger. Combining solar, AC utility/ generator, and battery to offer an uninterruptible power supply.

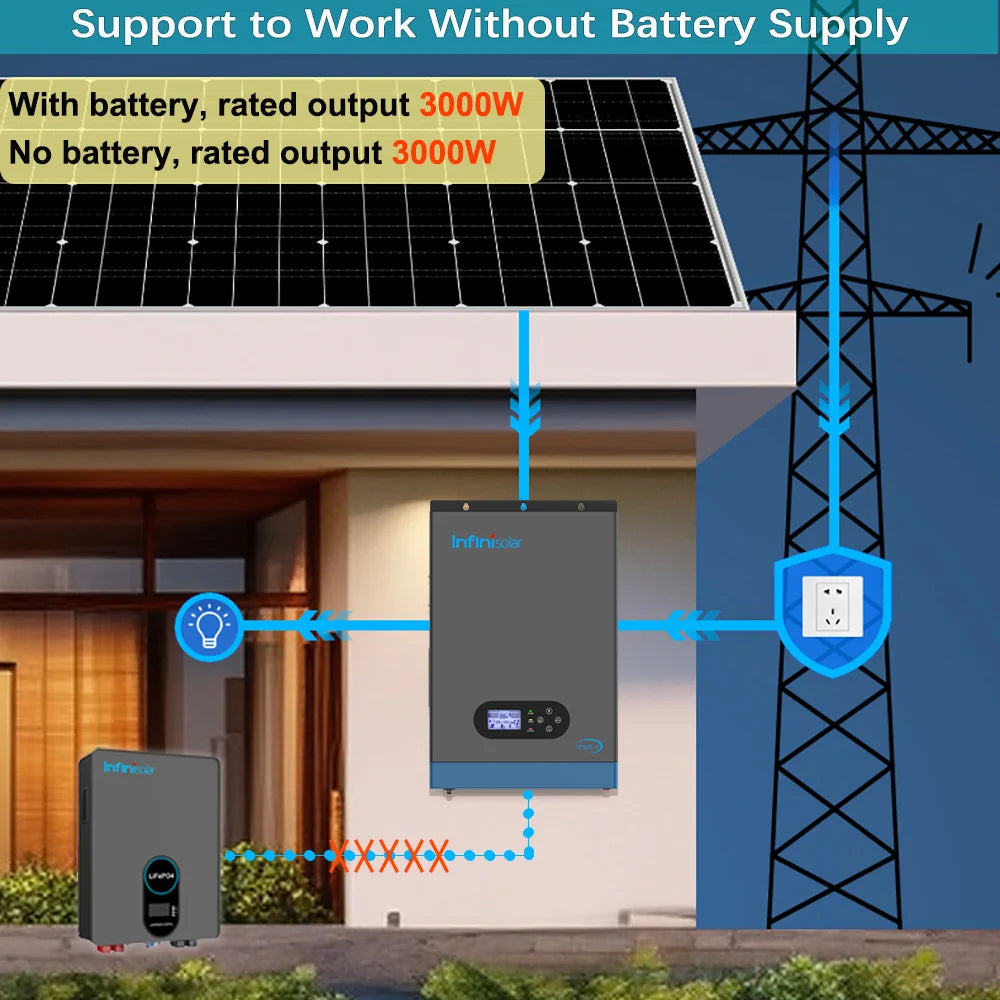

【Support to Work Without Battery】
Battery-less operation enables direct solar-to-load power conversion, harnessing solar energy for immediate appliance operation. And in this scenario, the rated output power is up to 3000W, which is the same as the inverter's full rated power.

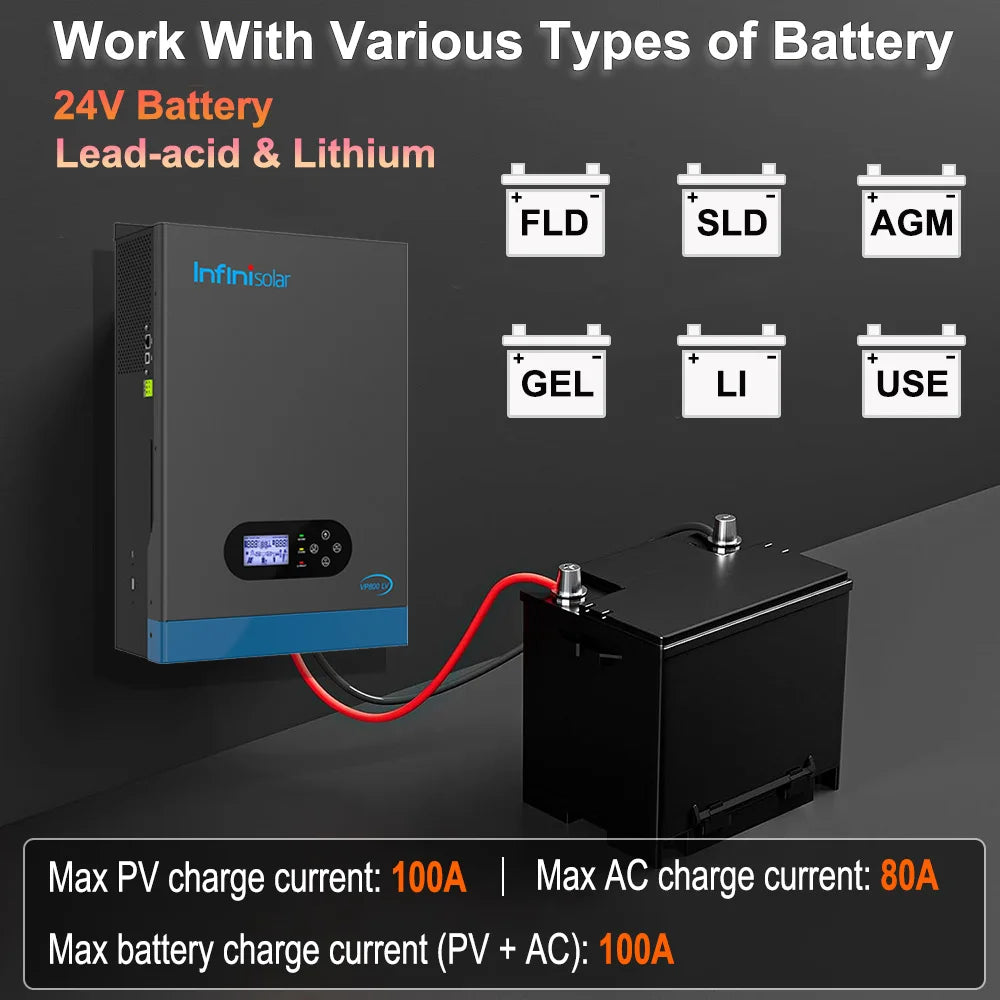

【High Compatibility With Various Batteries】
The inverter features wide battery compatibility, allowing connection to 24V Lead-acid (AGM, GEL, FLA, SLA...) batteries, Lithium (LiFePO4) batteries and user-defined batteries.

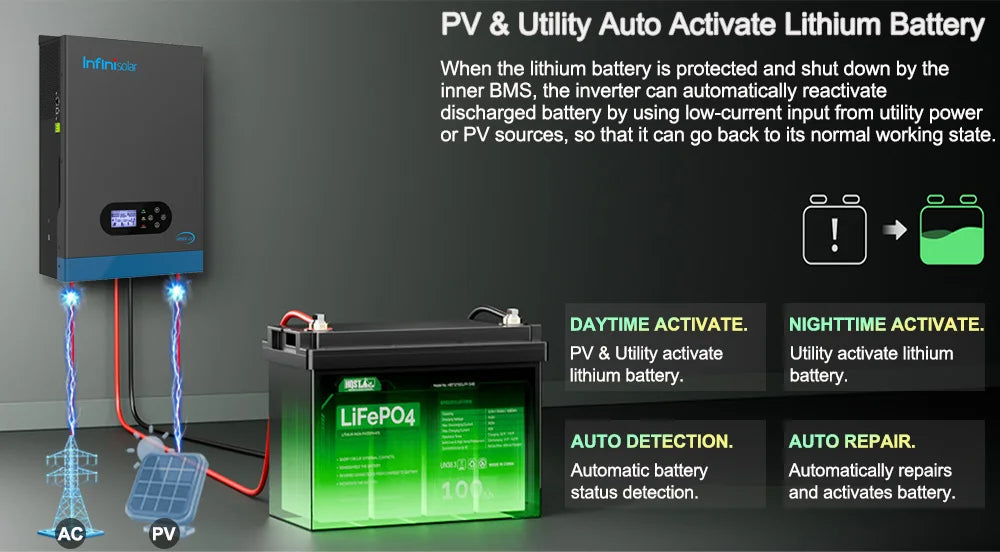

【Dual Lithium Battery Auto Activation】
When the lithium battery is dormant, the mains AC power and photovoltaic can automatically detect its status and activate it back to working state. The dual activation function ensures the dormant lithium battery can be activated during both day and night.

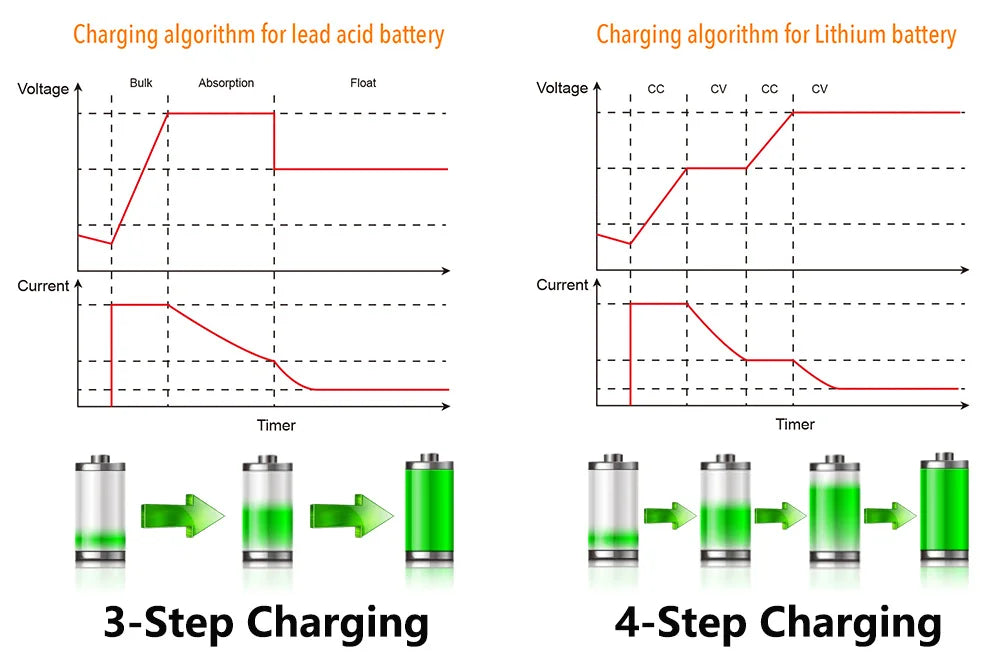

【Smart Charging Algorithm For Different Batteries 】
Compared to other inverters, we have adopted a 3-step charging algorithm for lead-acid battery, a 4-step charging algorithm for Lithium battery, which unlocks 30% longer battery life with precision parameter tuning.

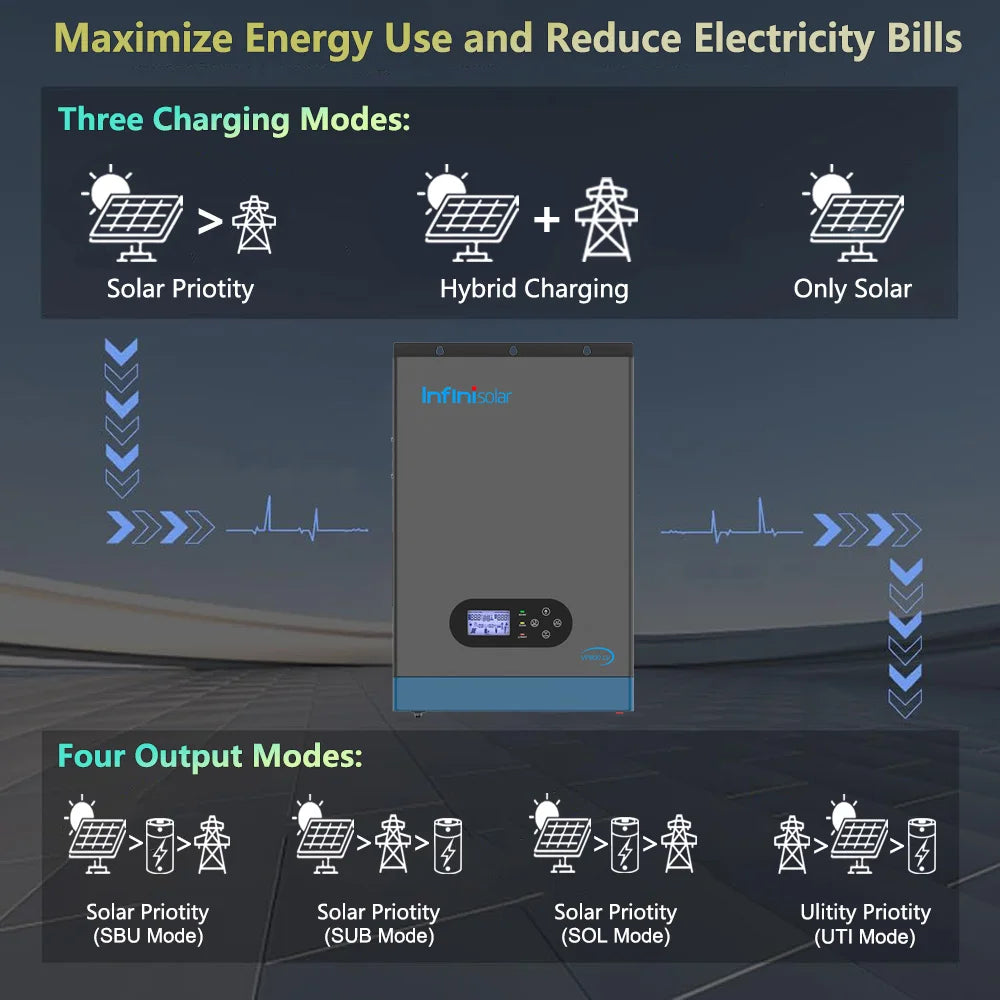

【Segmented Charging & Discharging Modes】
There are three battery charging modes that are optional, i.e. only solar, solar priority, and utility & solar hybrid charging; and four load output working modes (SUB, SBU, SOL, UTI) are available, to meet different application requirements.

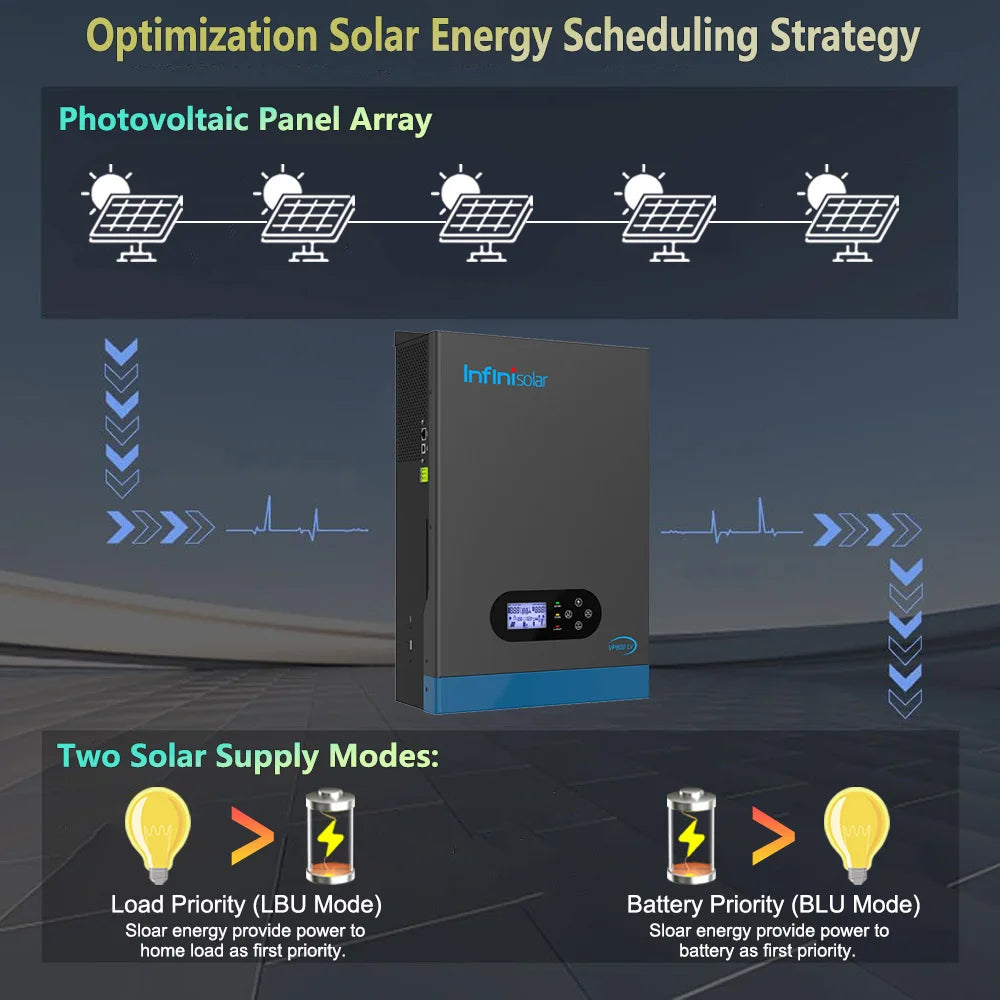

【 Optimisation Solar Supply Scheduling】
Featuring two solar supply modes: load priority and battery priority. Load priority mode can directly use solar energy to power home appliances for optimal self-consumption. Battery priority mode will charge the battery first for reliable backup energy. Let you align solar flow with your specific energy requirement.

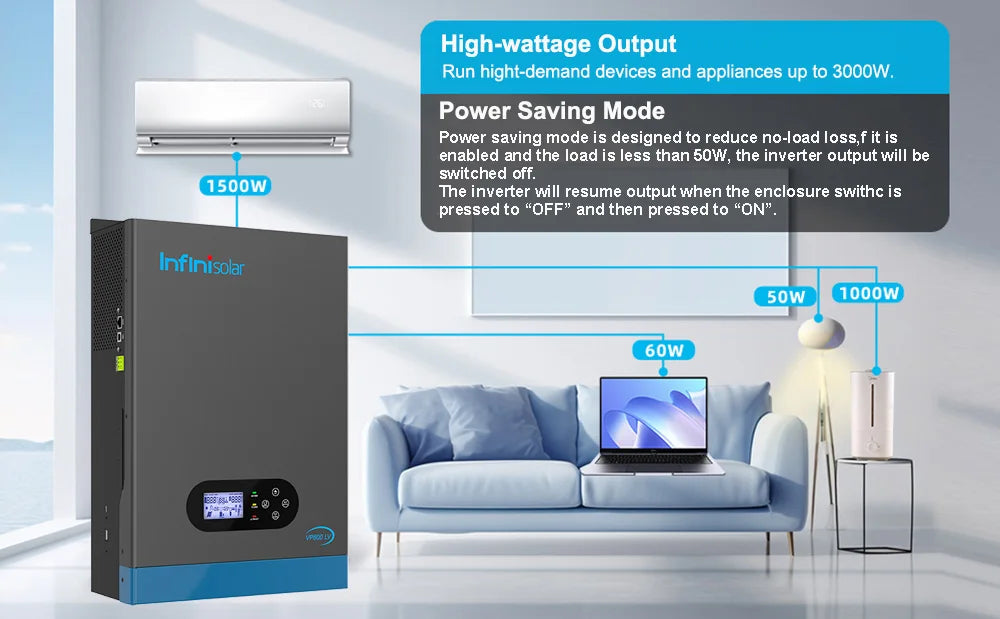

【Power Saving Mode Supported】
Power saving mode is designed to reduce no-load loss. If it is enabled and the load is less than 50W, the inverter output will be switched off. The inverter will resume output when the enclosure switch is pressed to "OFF" and then pressed to "ON".

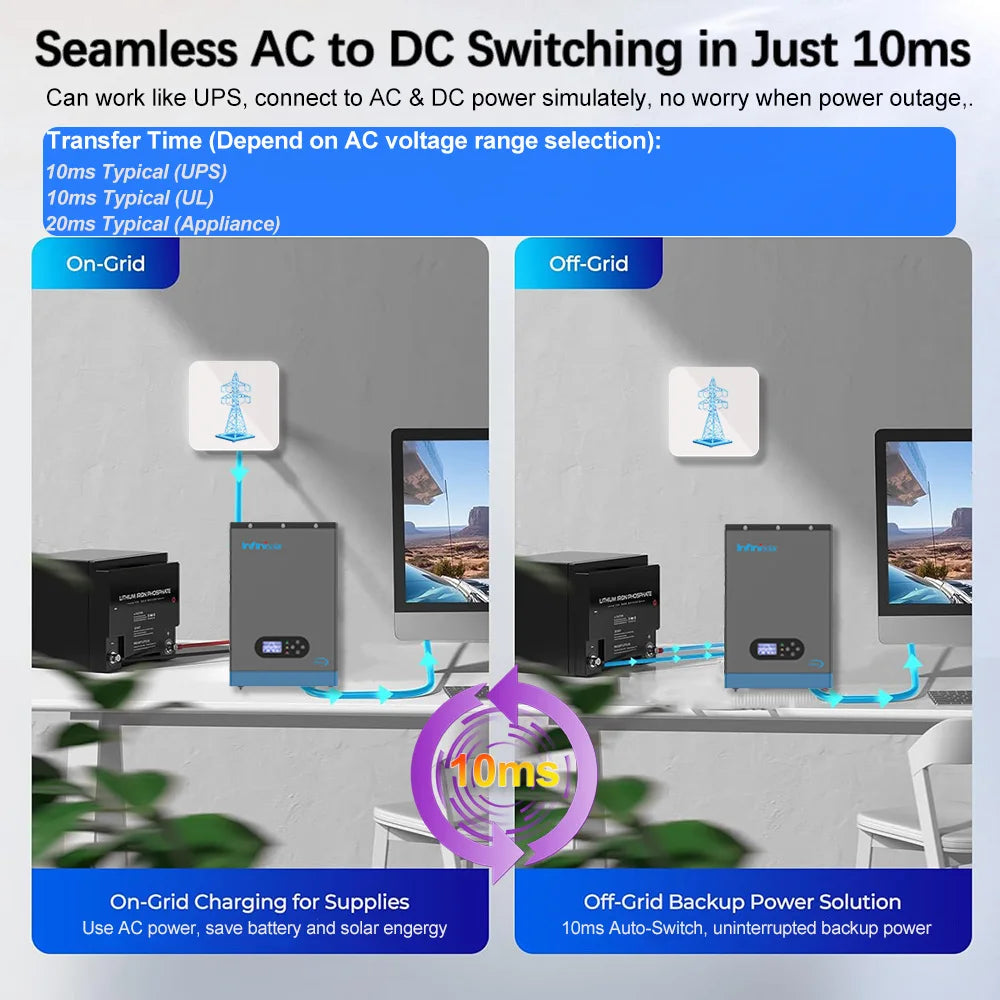

【Seamless AC & DC Auto Switching】
Can work like UPS, 10ms/20ms AC & DC auto-switching ensures uninterrupted power for critical loads during grid transitions.

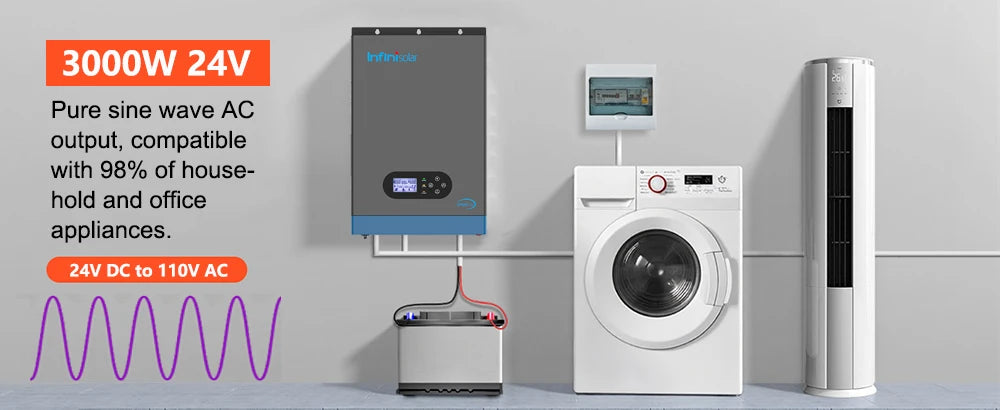

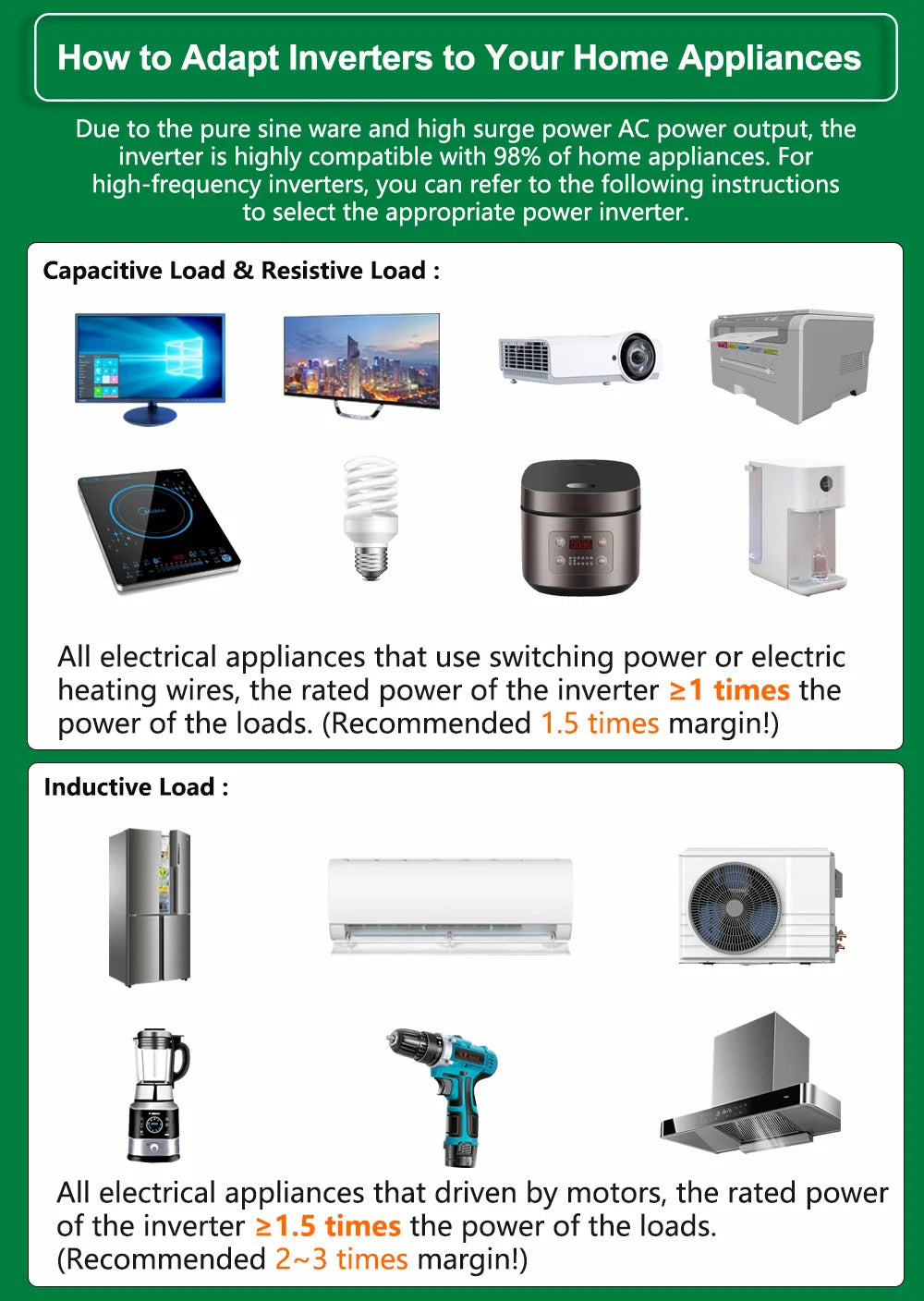

【Pure Sine Wave Solar Inverter】
3KW rated power, AC 110V pure sine wave output, suitable for 98% of household and office appliances such as refrigerators, lamps, televisions, fans, air conditioning, and other AC loads.

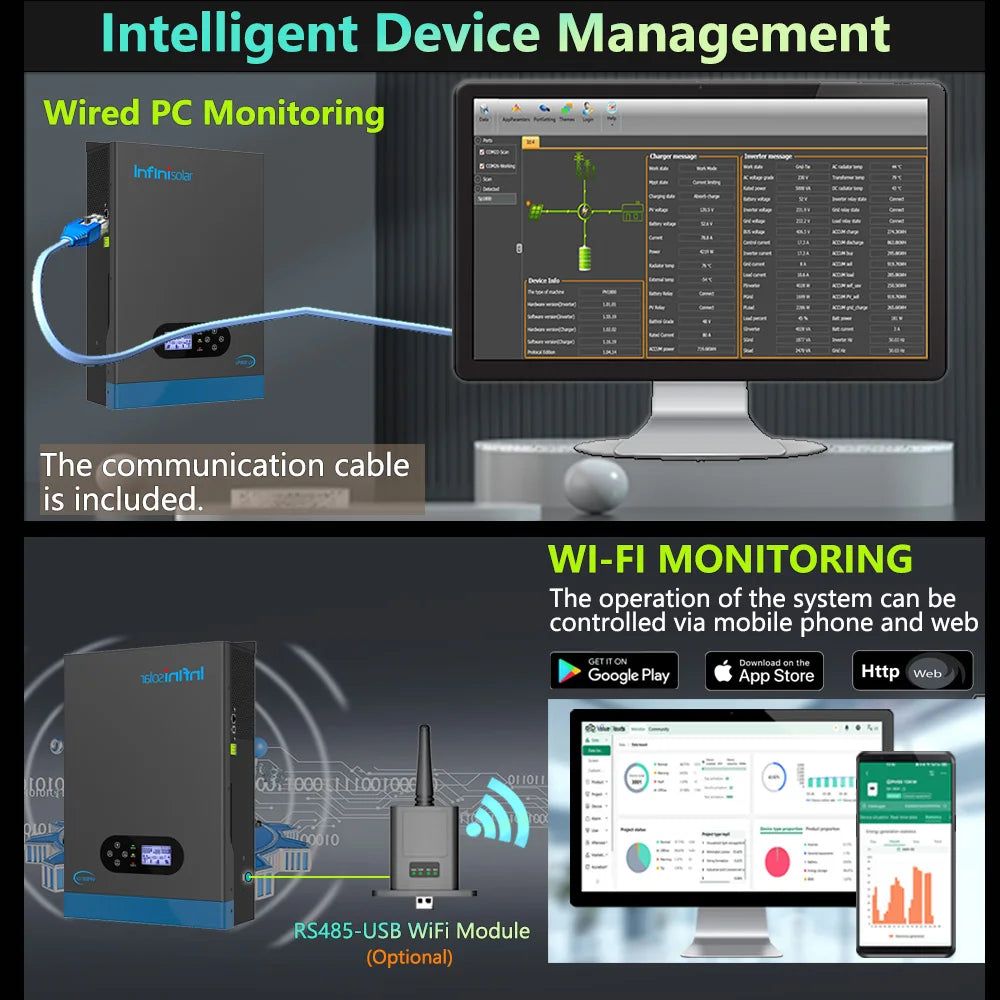

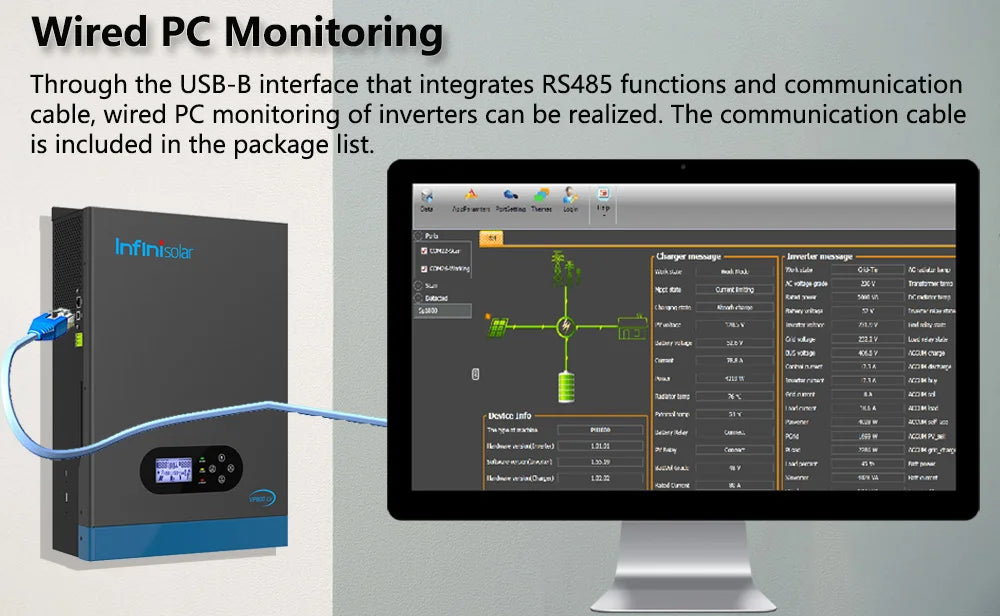

【Wired PC Monitoring】
Through the USB-B interface that integrates RS-485 functions and a communication cable, wired PC monitoring of inverters can be realised. The communication cable is included in the package list. (Note: PC monitoring and Wi-Fi monitoring cannot be enabled at the same time.)

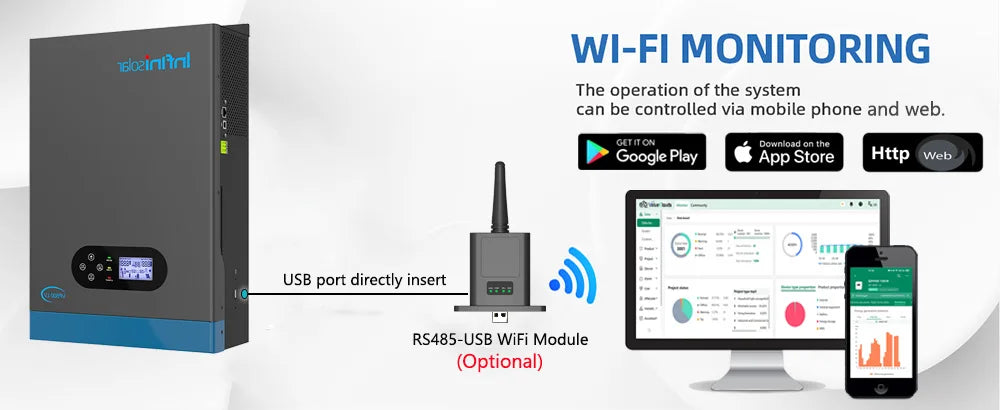

【WiFi Remote Monitoring】

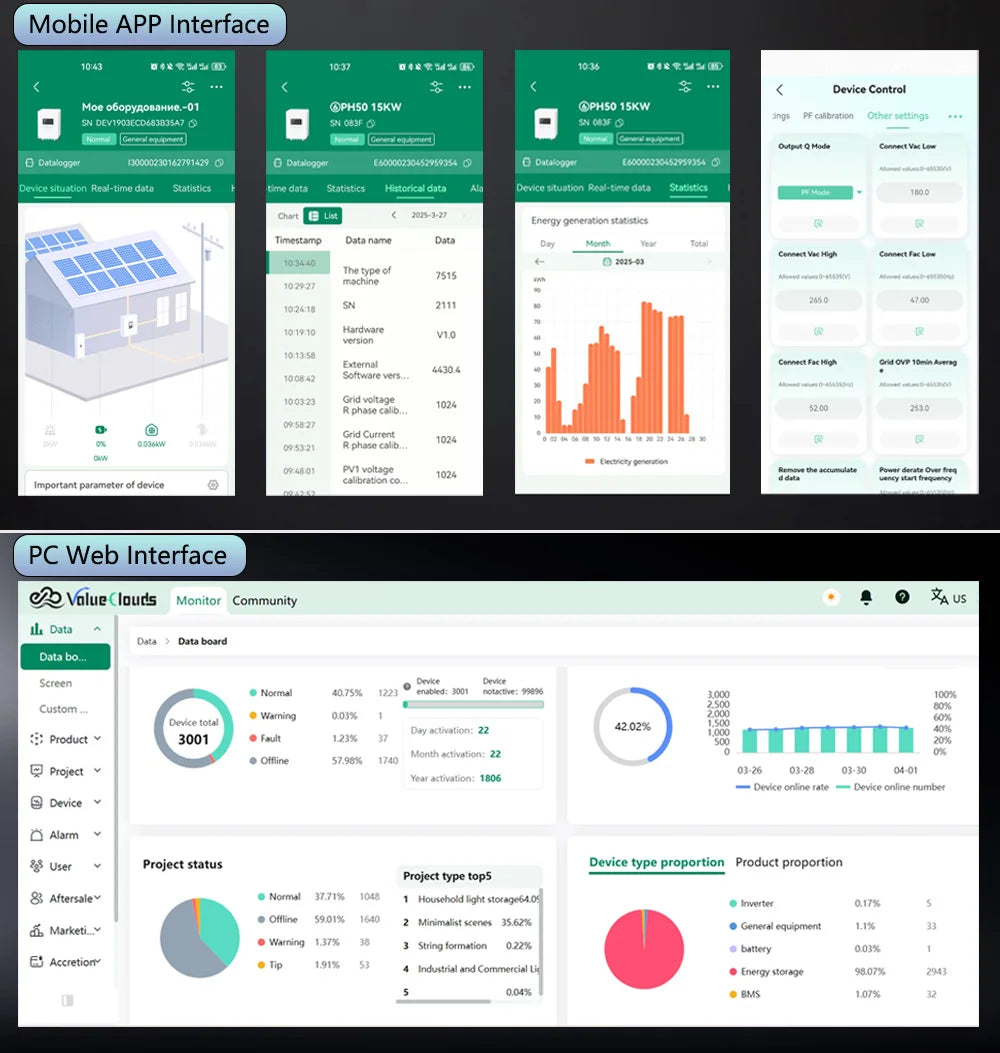

Unlike other inverters on the market, we use the USB-A interface that integrates an RS-485 communication function. This unique configuration enables seamless connection to an external Wi-Fi module, providing independent remote monitoring capabilities. Users can effortlessly access real-time device status or adjust parameters anytime & anywhere through a mobile app or PC web. (Note: The WiFi module is optional.)

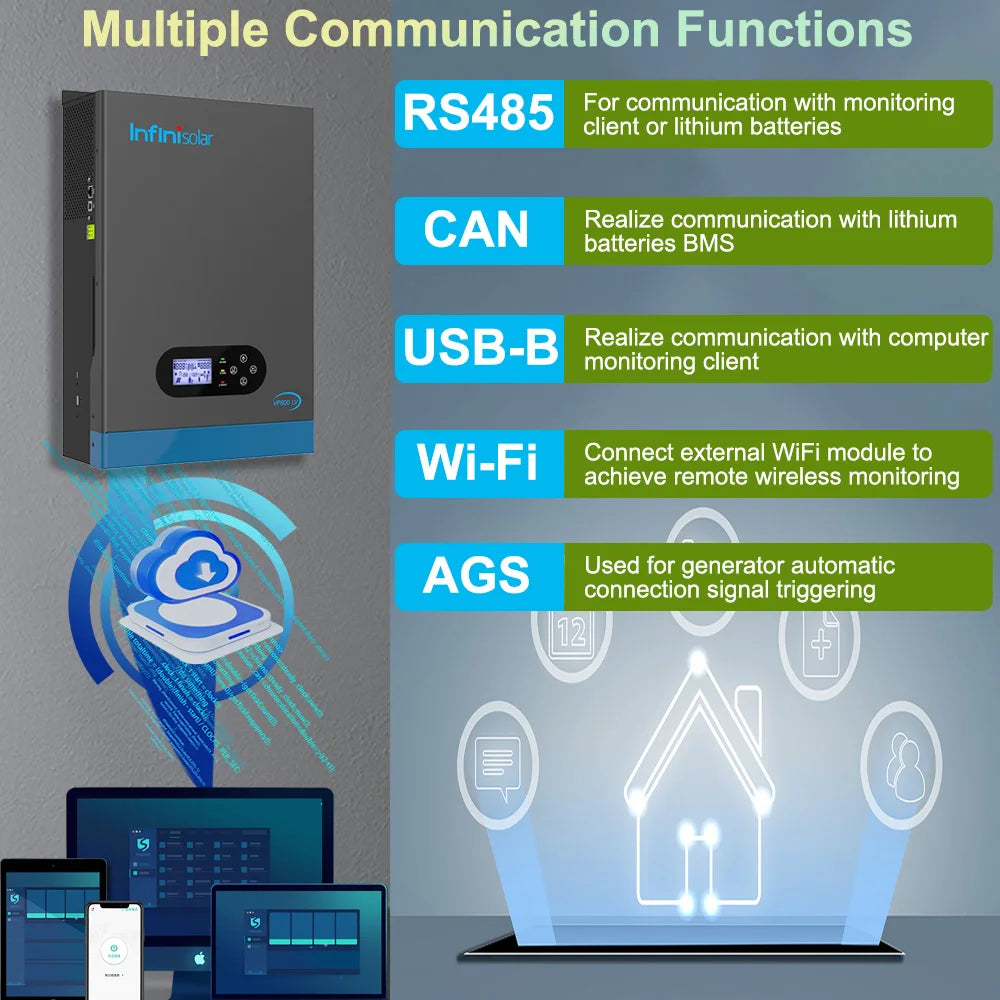

【Advanced Communication and Integration】
Through the built-in communication protocol and multiple independent communication interfaces (RS485, CAN, USB, WiFi, AGS), seamless communication between the inverter and external monitoring devices, generators and lithium batteries can be easily achieved.

【BMS Communication With LI Battery】
The inverter is built with BMS protocols for seamless lithium battery communication. Compatible with MUST and PYLON lithium batteries via CAN protocols.

【360° All Round Protections】
The hybrid solar inverter offers 360° comprehensive protection with various features, such as short circuit protection, over-voltage and under-voltage protection, overload protection, and reverse polarity protection. These safety measures significantly enhance the security of your electrical circuits and usage.
